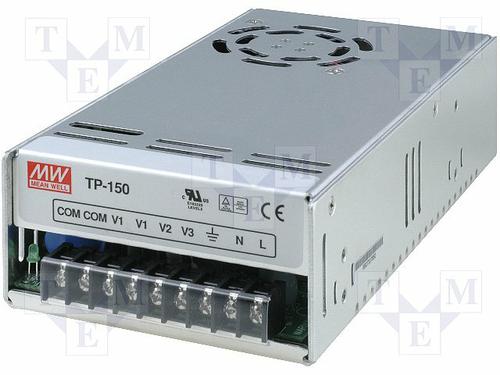

TP-150C

TP-150 系列 151.5 W 三输出 5 / 15 / - 15 V AC/DC 开关电源

TP-150 系列三路输出电源，带 PFC 功能

高效、长寿命和高可靠性

内置风扇

安装简便 — 螺钉接线端子

可调输出电压（仅输出 1 上，±10%）

通电 LED 指示器

功率因数校正，符合 EN 61000-3-2

EMC 符合 EN 55022 B 类标准

短路、过载和过电压保护

### 注

工作温度超过 50°C 时降额。

MTBF 符合 MIL-HDBK-217F 25°C 标准。

### 标准

EN 60950-1, UL 60950-1

### 认可

TUV、CB、UL 认证组件，适用于加拿大和美国

欧时:
Mean Well 151.5W 3输出 嵌入式开关模式电源 SMPS TP-150C, 127 → 370 V dc, 90 → 264 V ac输入

艾睿:
Your electronic devices will need this TP-150C AC to DC power supply from Mean-Well USA, Inc. to convert alternating currents into useful direct currents to operate. It has a voltage of 5|15|-15 V and maximum output power of 151.5 W. This part&s;s 3 outputs can handle a current up to 15|4.5|0.6 A. This part has a minimum operating temperature of -10 °C and a maximum of 60 °C.

Allied Electronics:
Power Supply; AC-DC; 5V@15A; 15V@4.5A; -15V@0.6A; 100-264V In; Enclosed; PFC; TP Series

富昌:
TP-150 系列 151.5 W 三输出 5 / 15 / - 15 V AC/DC 开关电源

Chip1Stop:
AC/DC Power Supply Triple-OUT 5V/15V/-15V 15A/4.5A/0.6A 151.5W 9-Pin

TME:
Pwr sup.unit: switched-mode; modular; 151.5W; 5VDC; 15VDC; -15VDC

MASTER:
AC/DC Power Supply - 3 Outputs - 5V/15V/-15V@15A/4.5A/0.6A - 151.5W

Online Components:
AC/DC Power Supply - 3 Outputs - 5V/15V/-15V@15A/4.5A/0.6A - 151.5W

Electro Sonic:
AC/DC Power Supply - 3 Outputs - 5V/15V/-15V@15A/4.5A/0.6A - 151.5W

CDI:
AC/DC 150W 5, 15, -15V Triple Output Power Supply, Enclosed
