低压差稳压器 LOW-DROPOUT VOLTAGE REGULATOR
Maintain a steady voltage level with this LDO linear regulator from Texas Instruments. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.25@300mA V. This voltage regulation device"s single output can produce a current up to 0.7 A. Using the part will provide the power your application needs by requiring a voltage only of 5.5 V and not exceeding a voltage of 42 V. With a fixed output that has a voltage of 5 V, this is power management at its best. Using a load regulation of 30mV and line regulation of 15mV is needed for a programmable DC power supply. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is positive. The maximum dropout voltage is 0.5@300mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 5 V
输出电流 400 mA
静态电流 12.0 mA
输出电容类型 Ceramic
跌落电压 0.25V @300mA
调节输出数 1
输入电压Max 42 V
输入电压Min 5.5 V
输出电流Max 0.7 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 5.5V ~ 42V
安装方式 Surface Mount
引脚数 4

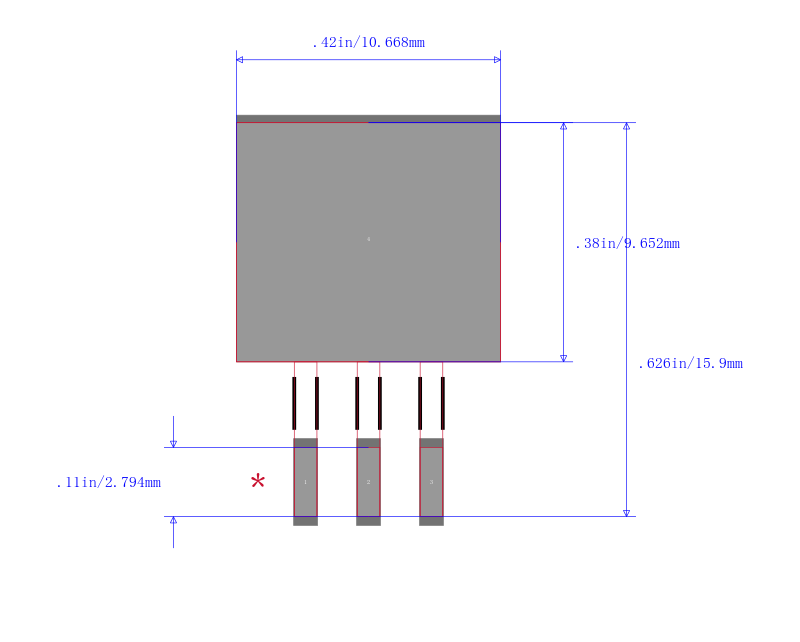

封装 TO-263-4
宽度 8.41 mm
封装 TO-263-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TL720M05QKTTRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
LM2940S-5.0/NOPB 德州仪器 | 类似代替 | TL720M05QKTTRQ1和LM2940S-5.0/NOPB的区别 |
LM2940CSX-5.0/NOPB 德州仪器 | 类似代替 | TL720M05QKTTRQ1和LM2940CSX-5.0/NOPB的区别 |
LM2940S-5.0 德州仪器 | 类似代替 | TL720M05QKTTRQ1和LM2940S-5.0的区别 |
