3 MHz的2 -A降压转换器在2毫米? 2毫米SON封装 3-MHz 2-A Step-Down Converter in 2-mm à 2-mm SON Package
降压 开关稳压器 IC 正 固定 1.2V 1 输出 1.6A 8-WFDFN 裸露焊盘
立创商城:
TLV620612TDSGRQ1
得捷:
IC REG BUCK 1.2V 1.6A 8WSON
艾睿:
Adjust the voltage level of your devices with this step down TLV620612TDSGRQ1 DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 2 A. With a small input voltage of 2.9 V and a max of 5.5 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.2 V, this is power management at its best. This converter is 97 % efficient. At a load regulation of -0.5%/ATyp and line regulation of 0%/VTyp a constant current can be produced at the output of your circuit. Its switching regulator has a frequency of 3400 kHz. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This converter has an operating temperature range of -40 °C to 105 °C.
DeviceMart:
IC REG BUCK SYNC 1.2V 2A 8WSON
德州仪器TI:
Automotive 2.9V to 5.5V, 3MHz, 1.6A Buck Converter With 1.2V Fixed Output Voltage in 2x2 SON Package
输出接口数 1
输出电压 1.2 V
输出电流 1.6 A
静态电流 18.0 µA
调节输出数 1
开关频率 3 MHz
拓扑结构 Buck
输入电压Max 5.5 V
输入电压Min 2.9 V
输出电压Min 1.2 V
输出电流Max 2 A
工作温度Max 105 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 8

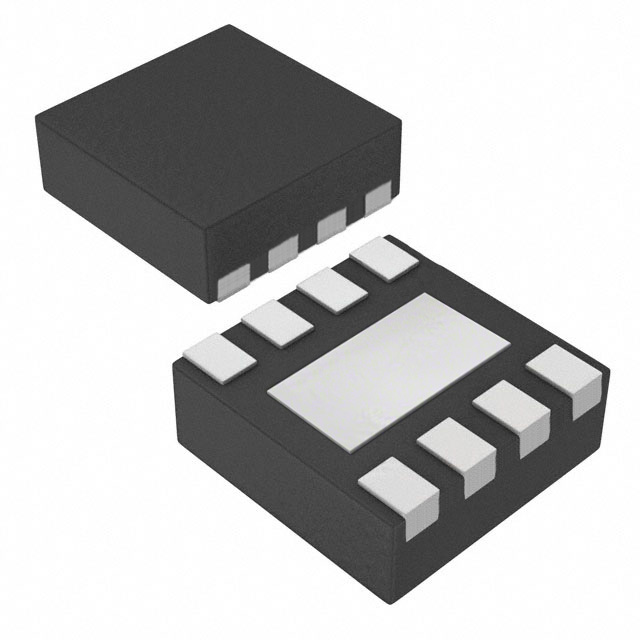

封装 WFDFN-8
封装 WFDFN-8
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
