具有集成复位指定MSOP8封装250 - mA的LDO稳压器 250-mA LDO REGULATOR WITH INTEGRATED RESET IN A MSOP8 PACKAGE
Having trouble maintaining a steady voltage? This LDO linear regulator from Texas Instruments will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.25@250mA V. This device has a maximum power dissipation of 412 mW. It has an overall accuracy of ±2 %. This voltage regulation device"s single output can produce a current up to 0.25 A. It only needs a voltage of at least 2.7 V while not exceeding 10 V to effectively power your circuit. With an adjustable output that has a voltage of 1.5 to 5.5 V, this is power management at its best. A load regulation of 1mVTyp and line regulation of 0.005%/VTyp is necessary for providing a constant voltage level at your output. Its maximum power dissipation is 412 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输入电压DC 10.0V max
输出电压 1.5V ~ 5.5V
输出电流 250 mA
耗散功率 0.412 W
静态电流 90.0 µA
输出电容类型 Capacitor Free
跌落电压 0.25V @250mA
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 412 mW
精度 2 %
输入电压 2.7V ~ 10V
安装方式 Surface Mount
引脚数 8

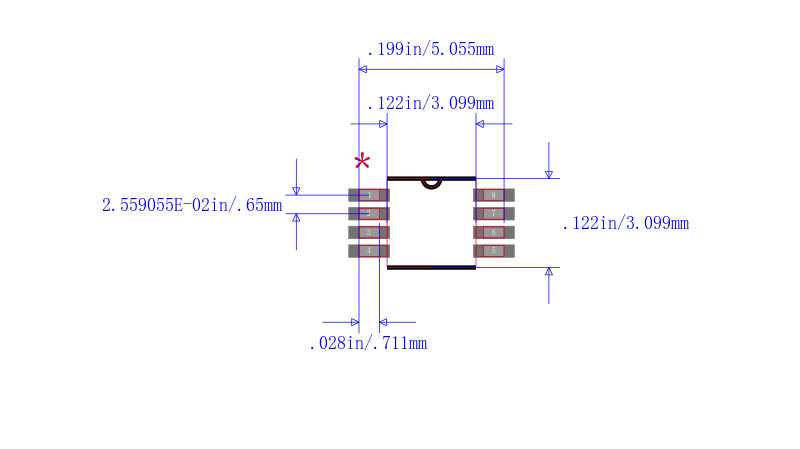

封装 VSSOP-8
长度 3 mm
宽度 3 mm
高度 0.97 mm
封装 VSSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS77901DGK TI 德州仪器 | 当前型号 | 当前型号 |
TPS77901DGKR 德州仪器 | 类似代替 | TPS77901DGK和TPS77901DGKR的区别 |
TPS77901DGKRG4 德州仪器 | 类似代替 | TPS77901DGK和TPS77901DGKRG4的区别 |
TPS77901DGKG4 德州仪器 | 类似代替 | TPS77901DGK和TPS77901DGKG4的区别 |
