TLE72792GV50XUMA1

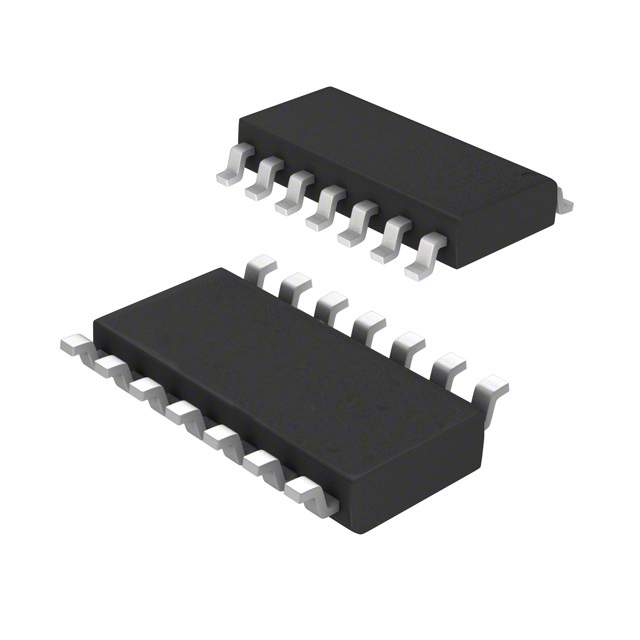

LDO Regulator Pos 5V 0.18A Automotive 14Pin DSO

Description:

The TLE7279-2 is a monolithic integrated voltage regulator with early warning and reset dedicated for microcontroller supplies under harsh automotive environment conditions.Due to its ultra low quiescent current the TLE7279-2 is perfectly suited for applications permanently connected to battery. In addition the regulator can be shut down via the Enable input causing the current consumption to drop below 3 µA. The TLE7279-2 is equipped with an output current limitation and an over temperature shutdown protecting the device against overload, short circuit and over temperature. It operates in the wide junction temperature range from -40 °C to 150 °C.

Summary of Features:

.

Output voltage 5 V, 3.3 V or 2.6 V

.

Output voltage tolerance ±2%

.

Output current up to 180 mA

.

Ultra low quiescent current consumption < 36 µA

.

Enable function

.

Very low dropout voltage

.

Reset with adjustable power-on delay

.

Input Voltage Sense Early Warning

.

Output protected against short circuit

.

Wide operation range: up to 45 V

.

Wide temperature range: -40 °C to 150 °C

.

Overtemperature protection

.

Overload protection

.

Green Product RoHS compliant

.

AEC Qualified

Benefits:

.

Wide input operation and temperature range

.

Very low quiescent current stable with 470nF ceramic capacitor

.

Very low dropout
