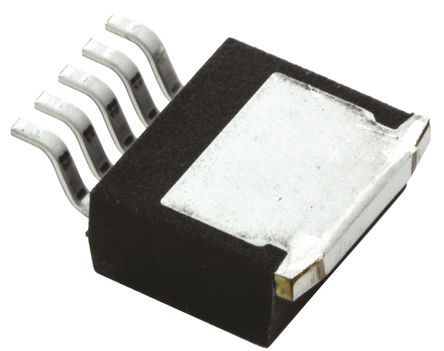

INFINEON TLE4252GATMA1 电压稳压器, LDO, 可调, 3.5V至40V输入, 280mV压差, 1.5V, 350mA输出, TO-263-5
LDO 稳压器,
Infineon 的一系列固定电压 LDO(低压降)线性稳压器
得捷:
IC REG LIN POS ADJ 250MA TO263-5
欧时:
Infineon TLE4252GATMA1 LDO 跟踪稳压器, 可调输出, 1.5 → 38 V输出, 500mA最大输出, ±10mV精确度
e络盟:
电压稳压器, LDO, 可调, 3.5V至40V输入, 280mV压差, 1.5V, 350mA输出, TO-263-5
艾睿:
Use the LDO TLE4252GATMA1 linear regulator from Infineon Technologies to maintain a constant output voltage. Its typical dropout voltage at current is 0.28@200mA V. It has an overall accuracy of ±0.2 %. This voltage regulation device&s;s single output can produce a current up to 0.2 A. Using the part will provide the power your application needs by requiring a voltage only of 3.5 V and not exceeding a voltage of 40 V. With an adjustable output that has a voltage of 1.5Min V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 10mV and line regulation of 10mV. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. The maximum dropout voltage is 0.6@200mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 150 °C.
安富利:
LDO Regulator Pos 1.5V 0.2A 6-Pin5+Tab TO-263 T/R
Chip1Stop:
LDO Regulator Pos 1.5V 0.2A Automotive 6-Pin5+Tab TO-263 T/R
Verical:
LDO Regulator Pos 1.5V 0.2A Automotive 6-Pin5+Tab TO-263 T/R
Newark:
# INFINEON TLE4252GATMA1 LDO, ADJ, 0.35A, 1.5V, TO-263-5
输出接口数 1
输出电压 1.5 V
输出电流 350 mA
针脚数 5
静态电流 0.1 mA
跌落电压 280 mV
输入电压Max 40 V
输入电压Min 3.5 V
输出电压Min 1.5 V
输出电流Max 0.2 A
工作温度Max 150 ℃
工作温度Min -40 ℃
精度 ±0.2 %
输入电压 40V ~ 3.5V
安装方式 Surface Mount
引脚数 5
封装 TO-263
长度 10 mm
宽度 10.25 mm
高度 4.4 mm
封装 TO-263
工作温度 -40℃ ~ 150℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 车用, Automotive, Secondary µcontroller supply, Sensor Supply, Power Management, 电源管理, Heat distribution, 工业, Industrial
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
