TPS62056DGSRG4

800 mA同步降压转换器 800-mA SYNCHRONOUS STEP-DOWN CONVERTER

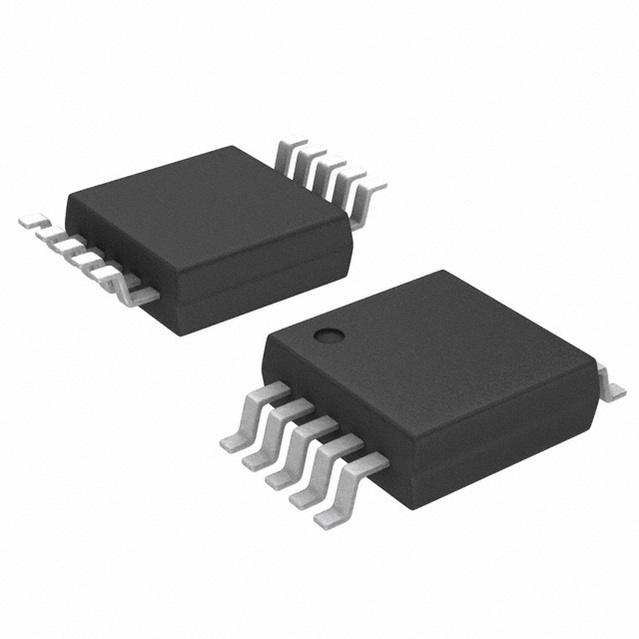

降压 开关稳压器 IC 正 固定 3.3V 1 输出 800mA 10-TFSOP，10-MSOP（0.118"，3.00mm 宽）

得捷:
IC REG BUCK 3.3V 800MA 10VSSOP

立创商城:
降压型 Vin=2.7V~10V Vout=3.3V 800mA

贸泽:
开关稳压器 3.3V Out 800mA Step-Down Converter

艾睿:
Conv DC-DC Single Step Down 2.7V to 10V 10-Pin VSSOP T/R

安富利:
The TPS6205x devices are a family of high-efficiency synchronous step-down DC-DC converters that are ideally suited for systems powered from a 1- or 2-cell Li-Ion battery or from a 3- to 5-cell NiCd, NiMH, or alkaline battery.The TPS6205x devices are synchronous pulse width modulation PWM converters with integrated N- and P-channel power MOSFET switches. Synchronous rectification increases efficiency and reduces external component count. To achieve highest efficiency over a wide load current range, the converter enters a power-saving pulse frequency modulation PFM mode at light load currents. Operating frequency is typically 850 kHz, allowing the use of small inductor and capacitor values. The device can be synchronized to an external clock signal in the range of 600 kHz to 1.2 MHz. For low noise operation, the converter can be programmed into forced-fixed frequency in PWM mode. In shutdown mode, the current consumption is reduced to less than 2 µA. The TPS6205x devices are available in the 10-pin DGS micro-small outline package MSOP and operates over a free air temperature range of –40°C to 85°C.

Chip1Stop:
Conv DC-DC Single Step Down 2.7V to 10V 10-Pin VSSOP T/R

Verical:
Conv DC-DC 2.7V to 10V Step Down Single-Out 3.3V 0.8A 10-Pin VSSOP T/R

Newark:
# TEXAS INSTRUMENTS  TPS62056DGSRG4  Synchronous Buck Step Down Switching Regulator, Fixed, 2.7V-10Vin, 3.3V/0.8A out, 850 kHz, MSOP-10
