Texas Instruments### 电荷泵转换器,Texas InstrumentsTexas Instruments 易于使用的无电感器电荷泵 IC 提供更简单的小型解决方案,具有高性能。 电荷泵或开关电容器转换器是电感式直流-直流转换器的备选解决方案,且提供比低压降 LDO 调节器更高的效率。
升压电荷泵转换器,Texas Instruments
得捷:
IC REG CHARGE PUMP 5V 20HTSSOP
立创商城:
升压型 Vin=2.7V~5.4V Vout=5V 300mA
德州仪器TI:
3 cell to regulated 5V, 300mA high efficiency charge pump with low battery comparator
欧时:

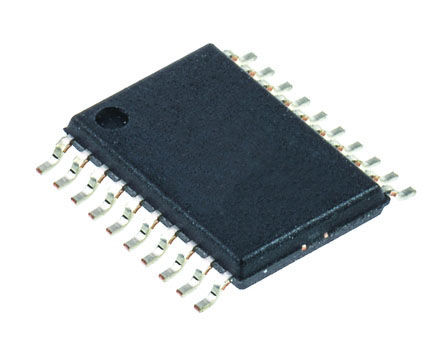

Texas Instruments TPS60130PWP 升压 电荷泵, 5 V输出, 20引脚 HTSSOP封装
e络盟:
直流/直流固定充电泵, 电压转换器, 2.7 V至5.4 V输入, 5 V至300 mA输出, HTSSOP-20
艾睿:
DC current is great for low voltage circuits, using this TPS60130PWP charge pump voltage doubler from Texas Instruments will provide a range of voltages. With an output that has a voltage of 5 V, this is power management at its best. Its output produces a current of 300Max mA. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This inverting charge pump has an operating temperature range of -40 °C to 85 °C. This device has a minimum operating supply voltage of 2.7 V and a maximum of 5.4 V.
安富利:
Charge Pump STPUP 5V 300mA 20-Pin HTSSOP EP Tube
Verical:
Charge Pump STPUP 5V 300mA 20-Pin HTSSOP EP Tube
Newark:
# TEXAS INSTRUMENTS TPS60130PWP CHARGE PUMP, BOOST, 5V, HTSSOP-20
力源芯城:
5V,高效电荷泵带低电池电量指示DC/DC转换器
DeviceMart:
IC REG BST SWITCHED CAP 20HTSSOP
输出接口数 1
输入电压DC 5.40 V
输出电压 5 V
输出电流 300 mA
针脚数 20
耗散功率 0.7 W
静态电流 60.0 µA
调节输出数 1
输出功率 700 mW
开关频率 320 kHz
过温保护 No
拓扑结构 Boost
输入电压Max 5.4 V
输入电压Min 2.7 V
输出电压Min 5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 700 mW
输入电压 2.7V ~ 5.4V
安装方式 Surface Mount
引脚数 20

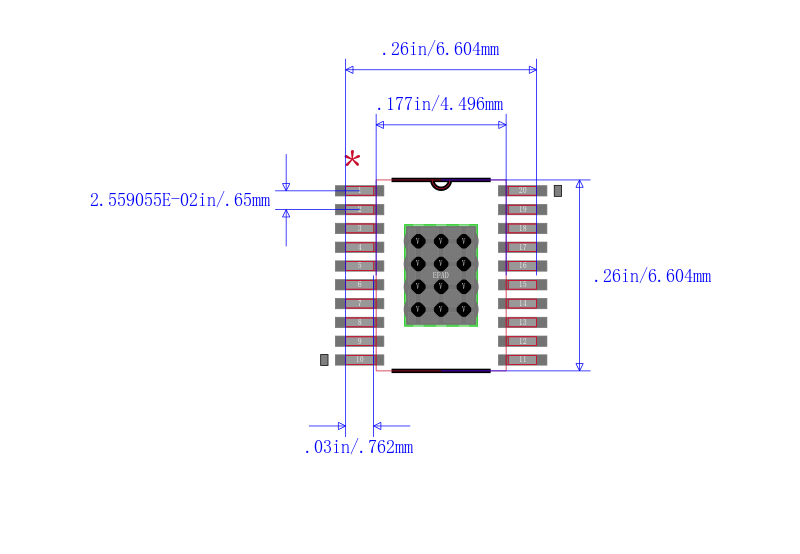

封装 HTSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 1.15 mm
封装 HTSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS60130PWP TI 德州仪器 | 当前型号 | 当前型号 |
TPS60130PWPR 德州仪器 | 完全替代 | TPS60130PWP和TPS60130PWPR的区别 |
TPS60130PWPG4 德州仪器 | 完全替代 | TPS60130PWP和TPS60130PWPG4的区别 |
TPS60130PWPRG4 德州仪器 | 类似代替 | TPS60130PWP和TPS60130PWPRG4的区别 |
