DCS?控制功能的3A高效同步降压转换器
The TLV62090 device is a high frequency synchronous step-down converter optimized for small solution size, high efficiency and suitable for battery powered applications. To maximize efficiency, the converter operates in pulse width modulation PWM mode with a nominal switching frequency of 1.4 MHz and it automatically enters power save mode operation at light load currents. When used in distributed power supplies and point of load regulation, the device allows voltage tracking to other voltage rails and tolerates output capacitors ranging from 10 µF up to 150 µF and beyond. Using the DCS-Control topology, the device achieves excellent load transient performance and accurate output voltage regulation.
The output voltage start-up ramp is controlled by the softstart pin, which allows operation as either a standalone power supply or in tracking configurations. Power sequencing is also possible by configuring the enable EN and power good PG pins. In power save mode, the device operates with typically 20-µA quiescent current. Power save mode is entered automatically and seamlessly, maintaining high efficiency over the entire load current range.

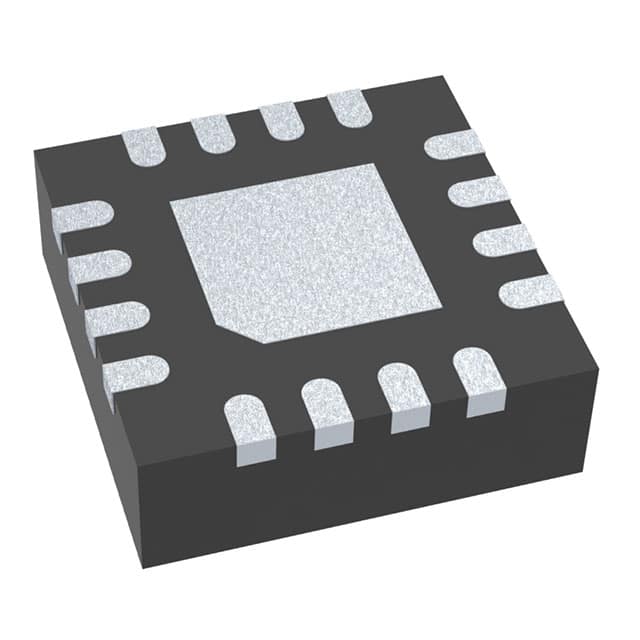

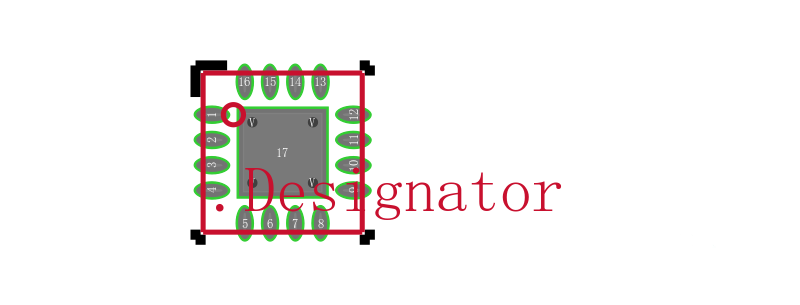

The device is available in a 3 mm × 3 mm 16-pin VQFN RGT package.
输出接口数 1
输出电压 0.8V ~ 5.5V
输出电流 3 A
针脚数 16
静态电流 20.0 µA
调节输出数 1
开关频率 1.4 MHz
拓扑结构 Buck
开关电流 4.6 A
输入电压Max 5.5 V
输入电压Min 2.5 V
输出电压Max 5.5 V
输出电压Min 0.8 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 5.5 V
安装方式 Surface Mount
引脚数 16
封装 VQFN-16
封装 VQFN-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
