Texas Instruments### 电荷泵转换器,Texas InstrumentsTexas Instruments 易于使用的无电感器电荷泵 IC 提供更简单的小型解决方案,具有高性能。 电荷泵或开关电容器转换器是电感式直流-直流转换器的备选解决方案,且提供比低压降 LDO 调节器更高的效率。
升压电荷泵转换器,Texas Instruments
得捷:
IC REG CHARGE PUMP DL 10VSSOP
德州仪器TI:
Single cell to 3.3V, 20mA dual output, high efficiency charge pump with push-pull power-good output
欧时:
### 升压电荷泵转换器,Texas Instruments### 电荷泵转换器,Texas InstrumentsTexas Instruments 易于使用的无电感器电荷泵 IC 提供更简单的小型解决方案,具有高性能。 电荷泵或开关电容器转换器是电感式直流-直流转换器的备选解决方案,且提供比低压降 LDO 调节器更高的效率。
贸泽:
Switching Voltage Regulators 3.0/3.3V 20mA Dual Out Hi-Eff Chrg Pump
艾睿:
Never worry about components not turning on from improper voltage by using this TPS60302DGS charge pump voltage doubler from Texas Instruments. Its output produces a current of 40Max|20Max mA. With an output that has a voltage of 1.8 to 3.6|3.3 V, this is power management at its best. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This inverting charge pump has an operating temperature range of -40 °C to 85 °C. This device has a minimum operating supply voltage of 0.9 V and a maximum of 1.8 V.
安富利:
Charge Pump STPUP 1.8V to 3.6V/3.3V 40mA/20mA 10-Pin VSSOP Tube
Verical:
Charge Pump STPUP 1.8V to 3.6V/3.3V 40mA/20mA 10-Pin VSSOP Tube
输出接口数 2
输出电压 3.3 V
输出电流 40mA, 20mA
耗散功率 0.424 W
静态电流 35.0 µA
跌落电压 200 mV
调节输出数 2
开关频率 700 kHz
过温保护 No
拓扑结构 Boost
输入电压Max 1.8 V
输入电压Min 0.9 V
输出电压Max 3.6 V
输出电压Min 1.8 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 424 mW
电源电压Min 0.9 V
输入电压 0.9V ~ 1.8V
安装方式 Surface Mount
引脚数 10

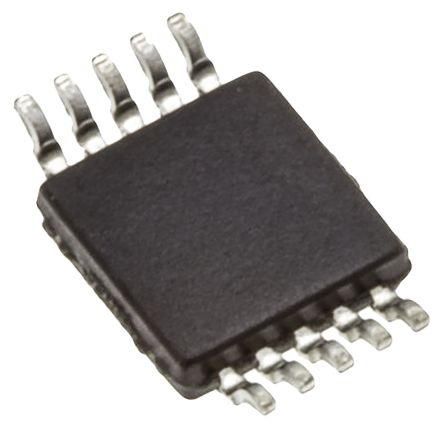

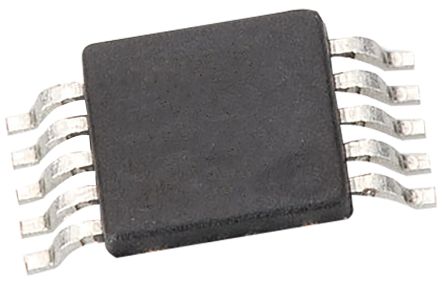

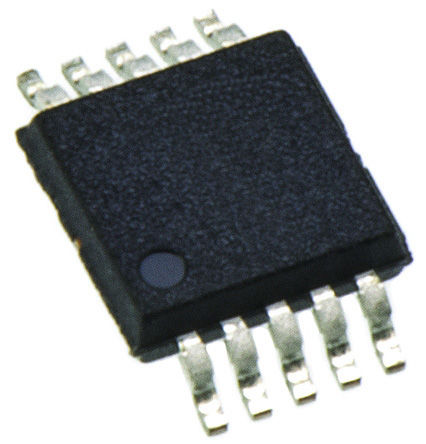

封装 VSSOP-10

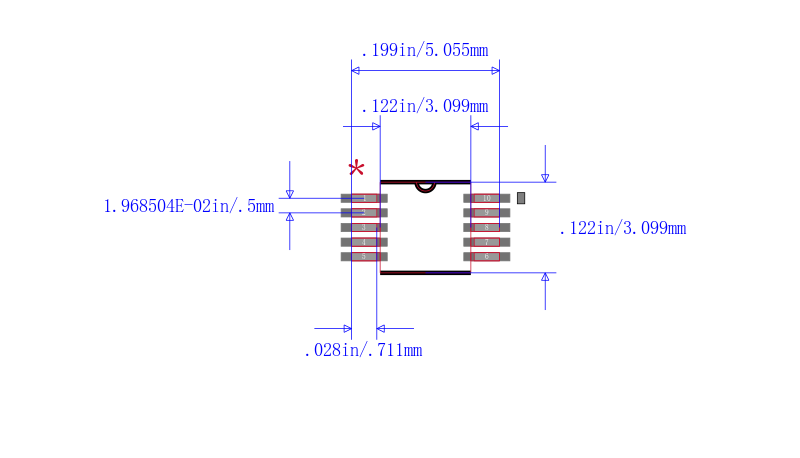

长度 3 mm
宽度 3 mm
高度 1.02 mm
封装 VSSOP-10
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS60302DGS TI 德州仪器 | 当前型号 | 当前型号 |
TPS60302DGSR 德州仪器 | 类似代替 | TPS60302DGS和TPS60302DGSR的区别 |
TPS60302DGSRG4 德州仪器 | 功能相似 | TPS60302DGS和TPS60302DGSRG4的区别 |
