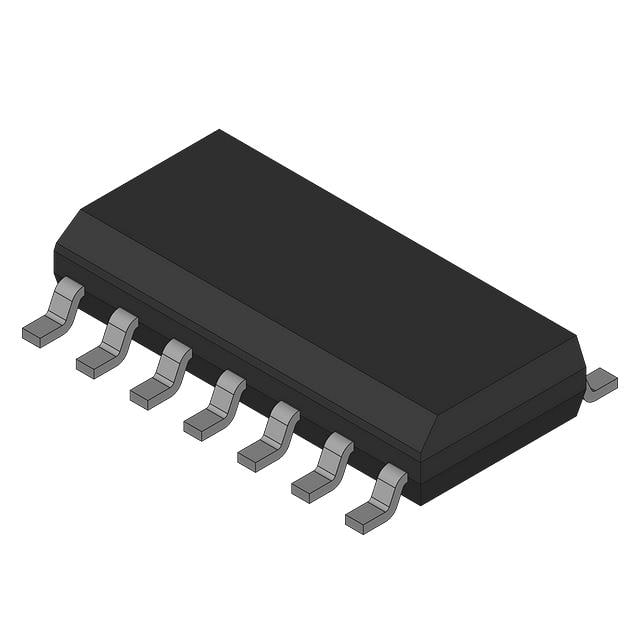

INFINEON TLE4278GXUMA1 固定电压稳压器, LDO, 5.5V至45V, 250mV压差, 5V输出, 150mA输出, SOIC-14
LDO 稳压器,
Infineon 的一系列固定电压 LDO(低压降)线性稳压器
得捷:
IC REG LINEAR 5V 200MA DSO14-30
欧时:
Infineon TLE4278GXUMA1 LDO 稳压器, 4.8 → 5.2 V输出, 2%精确度, 5.5 → 45 V输入, 14引脚
贸泽:
LDO Voltage Regulators Auto Linear 5.5 - 45 V
艾睿:
This LDO TLE4278GXUMA1 linear regulator developed by Infineon Technologies keeps the power stable! It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.25@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.2 A. It only needs a voltage of at least 5.5 V while not exceeding 45 V to effectively power your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. At a load regulation of -5mVTyp and line regulation of 20mV your circuit is capable of maintaining a constant voltage level at your output. The maximum dropout voltage is 0.5@150mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 150 °C.
Chip1Stop:
LDO Regulator Pos 5V 0.2A Automotive 14-Pin DSO
Verical:
LDO Regulator Pos 5V 0.2A Automotive 14-Pin DSO T/R
输出接口数 1
输出电压 5 V
输出电流 150 mA
针脚数 14
静态电流 180 µA
跌落电压 250 mV
输入电压Max 45 V
输入电压Min 5.5 V
输出电压Min 5 V
输出电流Max 0.2 A
工作温度Max 150 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 45 V
安装方式 Surface Mount
引脚数 14
封装 PG-DSO-14
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 PG-DSO-14
工作温度 -40℃ ~ 150℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 PB free
REACH SVHC版本 2015/12/17
