250 - mA的8引脚MSOP封装的LDO稳压器 250-mA LDO REGULATORS WITH 8-PIN MSOP PACKAGING
PMIC - 稳压器 - 线性 正 可调式 1 输出 250mA 8-VSSOP
立创商城:
TPS77401DGK
德州仪器TI:
250-mA, 10-V, low-dropout voltage regulator with power good
得捷:
IC REG LIN POS ADJ 250MA 8VSSOP
艾睿:
This LDO TPS77401DGK linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.125@250mA V. This device has a maximum power dissipation of 412 mW. This voltage regulation device&s;s single output can produce a current up to 0.25 A. It only needs a voltage of at least 2.7 V while not exceeding 10 V to effectively power your circuit. With an adjustable output that has a voltage of 1.5 to 5.5 V, this is power management at its best. By operating at a load regulation of 1mVTyp and line regulation of 0.005%/VTyp you can provide a constant voltage at your output. Its maximum power dissipation is 412 mW. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.5V to 5.5V 0.25A 8-Pin VSSOP Tube
Verical:
LDO Regulator Pos 1.5V to 5.5V 0.25A 8-Pin VSSOP Tube
输出接口数 1
输入电压DC 10.0V max
输出电压 1.5V ~ 5.5V
输出电流 250 mA
耗散功率 0.412 W
静态电流 0.092 mA
输出电容类型 Tantalum
跌落电压 0.125V @250mA
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 412 mW
精度 ±2 %
输入电压 2.7V ~ 10V
安装方式 Surface Mount
引脚数 8

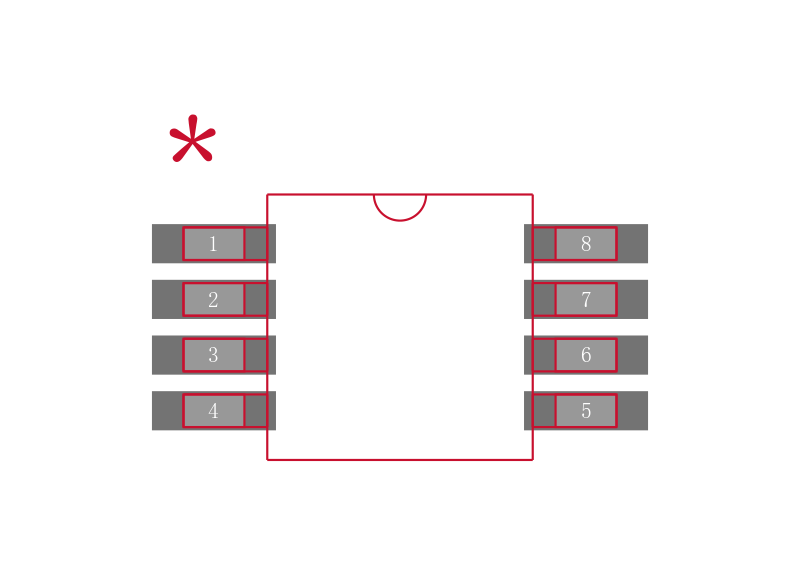

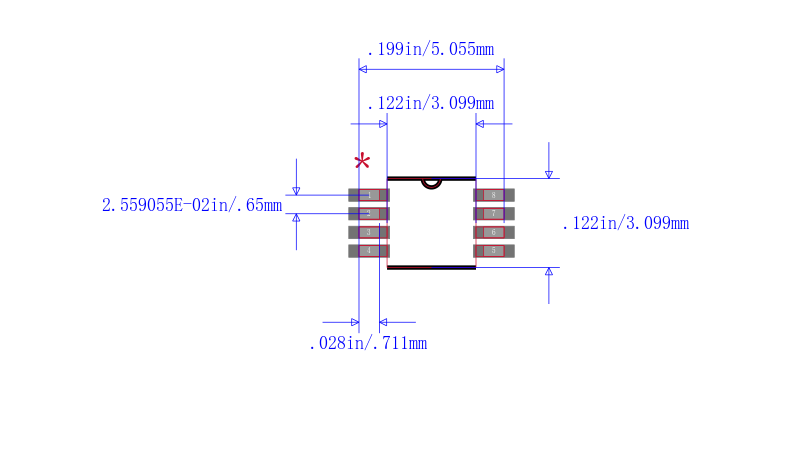

封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS77401DGK TI 德州仪器 | 当前型号 | 当前型号 |
TPS77401DGKG4 德州仪器 | 完全替代 | TPS77401DGK和TPS77401DGKG4的区别 |
TPS77401DGKR 德州仪器 | 类似代替 | TPS77401DGK和TPS77401DGKR的区别 |
TPS77401DGKRG4 德州仪器 | 功能相似 | TPS77401DGK和TPS77401DGKRG4的区别 |
