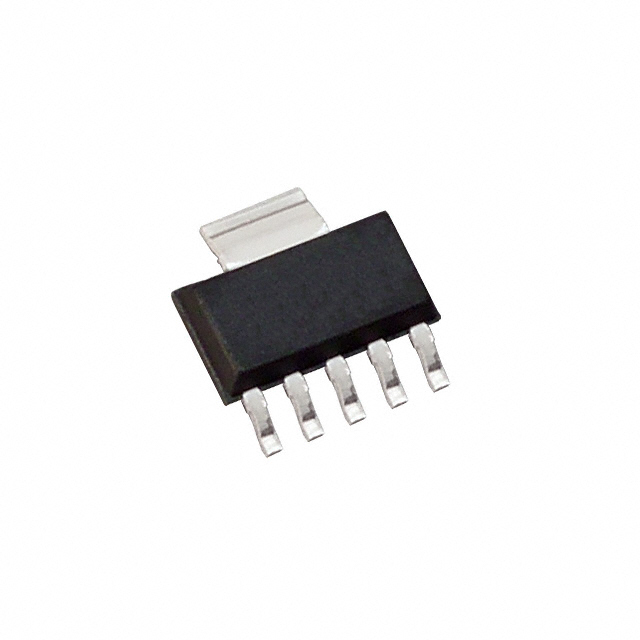

TPS73625DCQR

无电容， NMOS ， 400毫安低压差稳压器，反向电流保护 Cap-Free, NMOS, 400mA Low-Dropout Regulator with Reverse Current Protection

The TPS736xx family of low-dropout LDO linear voltage regulators uses a new topology: an NMOS pass element in a voltage-follower configuration. This topology is stable using output capacitors with low ESR, and even allows operation without a capacitor. It also provides high reverse blockage low reverse current and ground pin current that is nearly constant over all values of output current.

The TPS736xx uses an advanced BiCMOS process to yield high precision while delivering very low dropout voltages and low ground pin current. Current consumption, when not enabled, is under 1 µA and ideal for portable applications. The extremely low output noise 30 µVRMS with 0.1-µF CNR is ideal for powering VCOs. These devices are protected by thermal shutdown and foldback current limit.
