超低电压处理器监控电路 ULTRA-LOW VOLTAGE PROCESSOR SUPERVISORY CIRCUITS
The TPS312x family of ultralow voltage processor supervisory circuits provides circuit initialization and timing supervision, primarily for DSP and processor-based systems.
During power-on, RESET is asserted when the supply voltage VDD becomes higher than 0.75 V. Thereafter, the supply voltage supervisor monitors VDD and keeps RESET output active as long as VDD remains below the threshold voltage VIT. An internal timer delays the return of the output to the inactive state high to ensure proper system reset. The delay time, td = 180 ms, starts after VDD has risen above the threshold voltage VIT.
When the supply voltage drops below the threshold voltage VIT, the output becomes active low again. No external components are required. All the devices of this family have a fixed-sense threshold voltage VIT set by a high precision internal voltage divider.
The TPS3123/5/6/8 devices incorporate a manual reset input, MR. A low level at MR causes RESET to become active. The TPS3124 devices do not have the input MR, but include a high-level output RESET same as the TPS3125 and TPS3126 devices. In addition, the TPS3123/4/8 have a watchdog timer that needs to be triggered periodically by a positive or negative transition at WDI. When the supervising system fails to retrigger the watchdog circuit within the time-out interval ttout= 0.8 s, RESET output becomes active for the time period td. This event also reinitializes the watchdog timer.
The circuits are available in a 5-pin SOT23-5 package. The TPS312x devices are characterized for operation over a temperature range of –40°C to +85°C.
电源电压DC 3.30V max
供电电流 0.03 mA
耗散功率 0.437 W
静态电流 14.0 µA
阈值电压 1.62 V
复位电压Min 1.56 V
复位电压Max 1.68 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 437 mW
安装方式 Surface Mount
引脚数 5

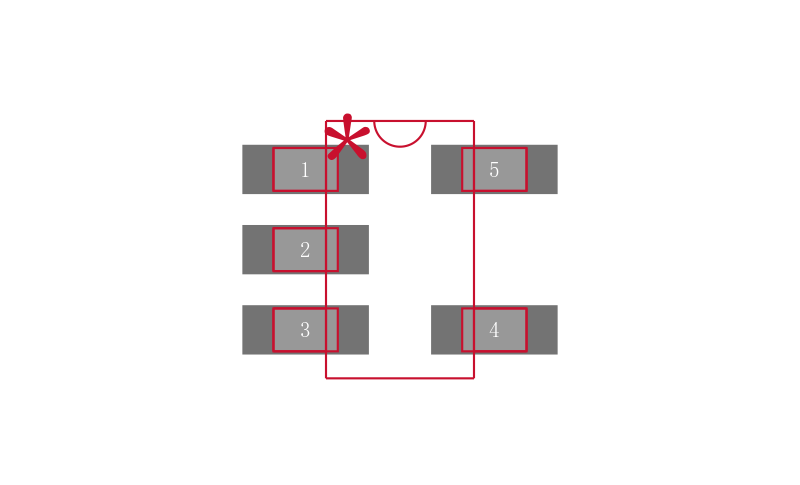

封装 SOT-23-5
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS3123J18DBVR TI 德州仪器 | 当前型号 | 当前型号 |
TPS3123J18DBVT 德州仪器 | 类似代替 | TPS3123J18DBVR和TPS3123J18DBVT的区别 |
TPS3123J18DBVTG4 德州仪器 | 类似代替 | TPS3123J18DBVR和TPS3123J18DBVTG4的区别 |
TPS3123J18DBVRG4 德州仪器 | 类似代替 | TPS3123J18DBVR和TPS3123J18DBVRG4的区别 |
