TPS62161DSGT

Step-Down DC/DC Converters Integrated Switch 9V to 30V Input Max., Texas Instruments### 直流/直流开关调节器转换器（集成开关），Texas InstrumentsTexas Instruments 的此系列高度集成的高效开关稳压器包括步升（升压）、步降（降压）、步升/降（增压/降压）和反相类型，为每个直流稳压器应用提供高效的解决方案。

Description

The TPS6216x device family are easy to use synchronous step-down DC/DC converters optimized for applications with high power density. A high switching frequency of typically 2.25 MHz allows the use of small inductors and provides fast transient response as well as high output voltage accuracy by utilization of the DCS-Control™ topology.

 Features

• DCS-Control™ Topology

• Input Voltage Range from 3 V to 17 V

• Up to 1-A Output Current

• Adjustable Output Voltage From 0.9 V to 6 V

• Fixed Output Voltage Versions

• Seamless Power Save Mode Transition

• Typically 17-µA Quiescent Current

• Power Good Output

• 100% Duty Cycle Mode

• Short Circuit Protection

• Over Temperature Protection

• Pin to Pin Compatible With TPS62170 and TPS62125

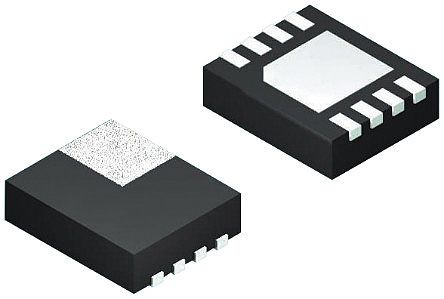

• Available in 3.00 mm x 3.00 mm 8-Pin VSSOP and 2.00 mm × 2.00 mm 8-Pin WSON Packages

Applications

• Standard 12-V Rail Supplies

• POL Supply From Single or Multiple Li-Ion Battery

• LDO Replacement

• Embedded Systems

• Digital Still Camera, Video

• Mobile PCs, Tablet-PCs, Modems
