TEXAS INSTRUMENTS TPS40190DRCT 直流/直流控制器, 电压模式, 4.5V至15V, 1路输出, 同步降压, 300kHz, VSON-10
Think of Texas Instruments" synchronous buck DC voltage controller the next time you need to change and manage different voltage levels within your project. This DC voltage controller has single output. Its output produces a current of 20Max A. This DC voltage controller has an input voltage of 4.5 to 15 V. You can operate this at a switching frequency of 360 kHz. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 4.50V min
输出接口数 1
输出电压 0.6V ~ 12.75V
输出电流 20 A

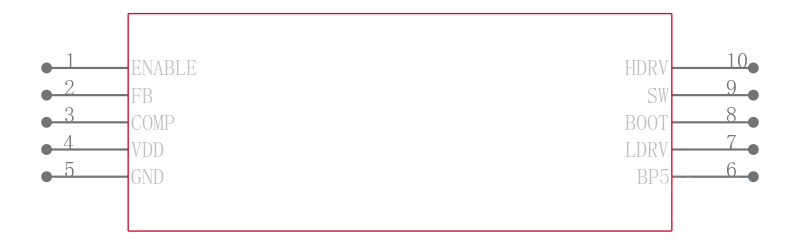

针脚数 10
静态电流 2.50 mA
调节输出数 1
开关频率 300 kHz
过温保护 No
拓扑结构 Buck
占空比 85 %
输入电压Max 15 V
输入电压Min 4.5 V
输出电流Max 20 A
最大占空比 0.85
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 15V
电源电压Max 15 V
电源电压Min 4.5 V
输入电压 4.5V ~ 15V
引脚数 10

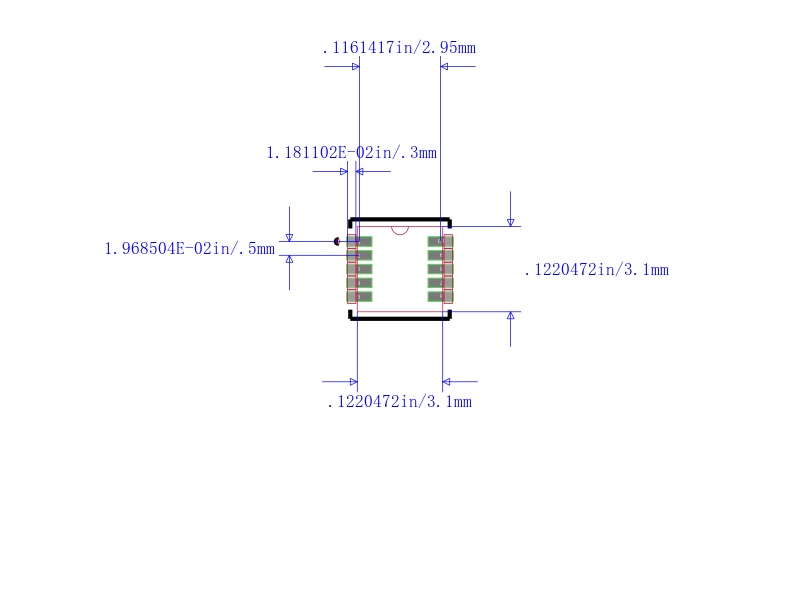

封装 VFDFN-10
封装 VFDFN-10
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS40190DRCT TI 德州仪器 | 当前型号 | 当前型号 |
TPS40190DRCTG4 德州仪器 | 完全替代 | TPS40190DRCT和TPS40190DRCTG4的区别 |
TPS40190DRCR 德州仪器 | 类似代替 | TPS40190DRCT和TPS40190DRCR的区别 |
TPS40190DRCRG4 德州仪器 | 功能相似 | TPS40190DRCT和TPS40190DRCRG4的区别 |
