TEXAS INSTRUMENTS TPS2543RTET. 芯片, 接口, USB电源开关, 2.6GHZ, WQFN-16
USB 充电端口控制器,Texas Instrument
### USB 电源和充电端口控制器,Texas Instruments
得捷:
IC PWR SWITCH N-CHAN 1:1 16WQFN
立创商城:
TPS2543RTET
德州仪器TI:
USB charging port controller and 2.5A power switch with load detection
欧时:
Texas Instruments TPS2543RTET USB 控制器, 支持USB 2.0, 4.5 → 5.5 V, 16针 QFN封装
e络盟:
TEXAS INSTRUMENTS TPS2543RTET 电源开关和控制器, USB充电端口, 高压侧, 高电平有效, 1路输出, 5V, 3A, WQFN-16
艾睿:
Use this usb charging port TPS2543RTET USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. It only needs a voltage of at least 4.5 V while not exceeding 5.5 V to effectively power your circuit. Its current limit is 2.97 A. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This USB powered network switch has an operating temperature range of -40 °C to 125 °C.
安富利:
USB Charging Port Controller and Power Switch 16-Pin WQFN EP T/R
Chip1Stop:
USB Power SW USB Charging Port Controller Single 5.5V 2.97A 16-Pin WQFN EP T/R
Verical:
USB Power SW USB Charging Port Controller Single 5.5V 2.97A 16-Pin WQFN EP T/R
Newark:
# TEXAS INSTRUMENTS TPS2543RTET USB Charging Port Power Switch and Controller, High Side, Active High, 1 Output, 5V, 3A, WQFN-16
DeviceMart:
IC USB PWR SW/CTRLR CHRG 16WQFN
Win Source:
IC USB PWR SW/CTRLR CHRG 16WQFN
电源电压DC 4.50V min
输出接口数 1
输入电压DC 5.00 V
针脚数 16
输入电压Max 5.5 V
输入电压Min 4.5 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 5 V
安装方式 Surface Mount
引脚数 16

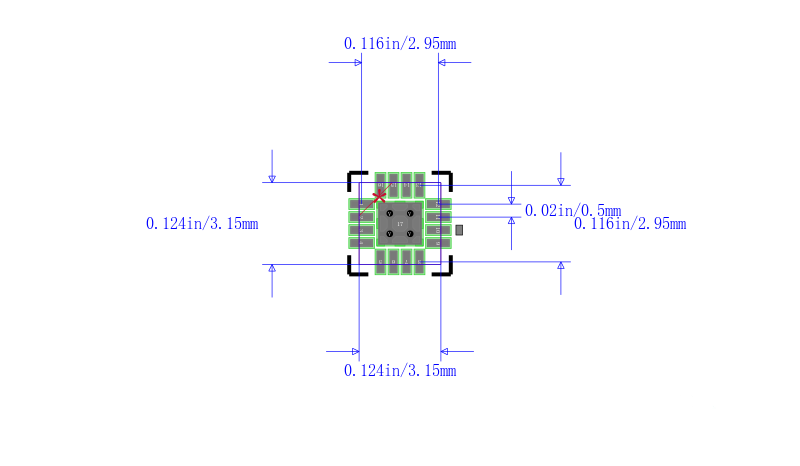

封装 WQFN-16
长度 3.15 mm
宽度 3.15 mm
高度 0.72 mm
封装 WQFN-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS2543RTET TI 德州仪器 | 当前型号 | 当前型号 |
TPS2546RTER 德州仪器 | 类似代替 | TPS2543RTET和TPS2546RTER的区别 |
TPS2543RTER 德州仪器 | 类似代替 | TPS2543RTET和TPS2543RTER的区别 |
TPS2543QRTETQ1 德州仪器 | 类似代替 | TPS2543RTET和TPS2543QRTETQ1的区别 |
