低压差稳压器 LOW-DROPOUT VOLTAGE REGULATORS
description
The TPS71xx integrated circuits are a family of micropower low-dropout LDO voltage regulators. An order of magnitude reduction in dropout voltage and quiescent current over conventional LDO performance is achieved by replacing the typical pnp pass transistor with a PMOS device.
Available in 5-V, 4.85-V, and 3.3-V Fixed-Output and Adjustable Versions
Very Low-Dropout Voltage . . . Maximum of 32 mV at IO = 100 mA TPS7150
Very Low Quiescent Current – Independent of Load . . . 285 µA Typ
Extremely Low Sleep-State Current 0.5 µA Max
2% Tolerance Over Specified Conditions For Fixed-Output Versions
Output Current Range of 0 mA to 500 mA
TSSOP Package Option Offers Reduced Component Height for Space-Critical Applications
Power-Good PG Status Output
输出接口数 1
输出电压 5 V
输出电流 500 mA
耗散功率 0.7 W
输出电容类型 Tantalum
跌落电压 0.0029V @10mA
输入电压Max 10 V
输入电压Min 5.33 V
工作温度Max 125 ℃
工作温度Min 40 ℃
输入电压 5.33V ~ 10V
安装方式 Surface Mount
引脚数 20

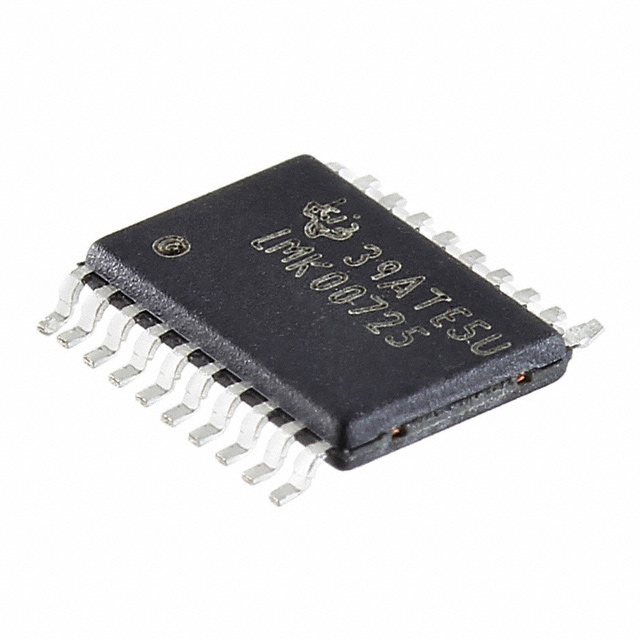

封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
