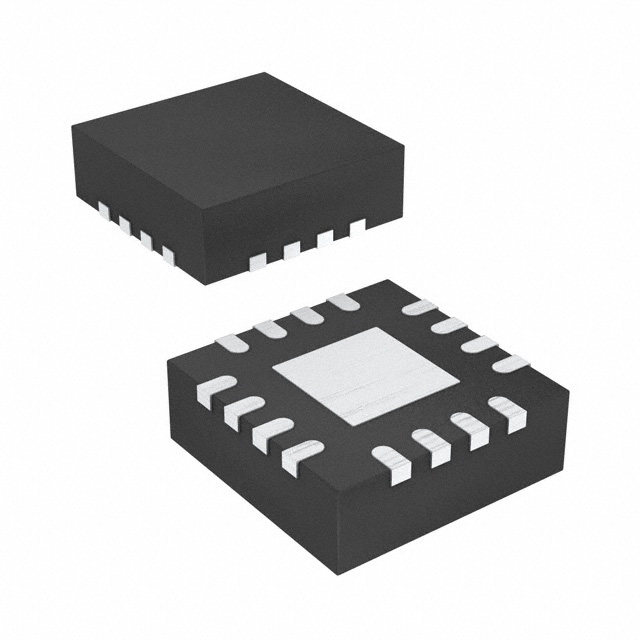

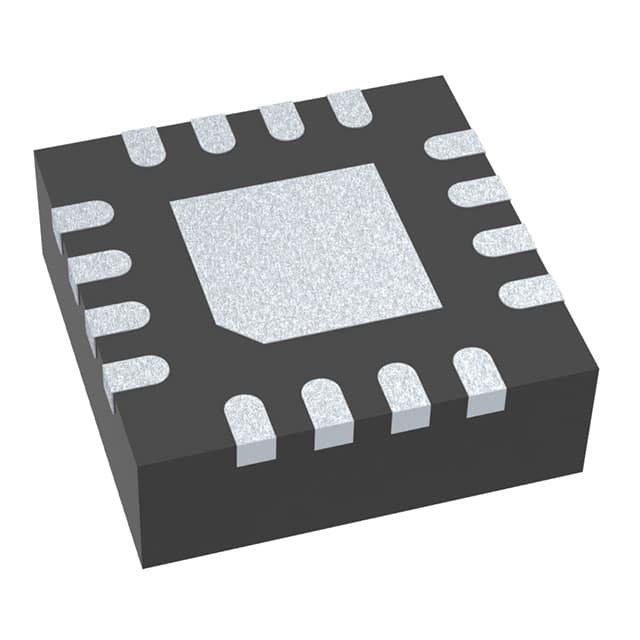

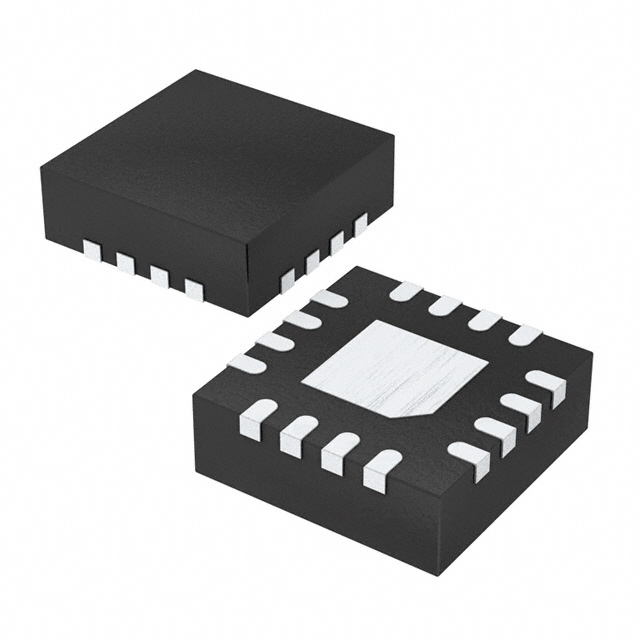

TPS7A7200RGTT

TEXAS INSTRUMENTS  TPS7A7200RGTT  电压稳压器, LDO, 可调, 1.5V至6.5V输入, 180mV压差, 900mV至5V/2A输出, QFN-16

The is a low-dropout LDO Voltage Regulator designed for applications seeking very-low dropout capability with an input voltage from 1.5 to 6.5V. The device offers an innovative, user-configurable, output-voltage setting from 0.9 to 3.5V, eliminating external resistors and any associated error. The device has very fast load-transient response, is stable with ceramic output capacitors and supports a better than 2% accuracy over line, load and temperature. A soft-start pin allows for an application to reduce inrush into the load. Additionally, an open-drain, Power Good signal allows for sequencing power rails. The device belongs to a family of new-generation LDO regulator that uses innovative circuitry to offer very low dropout voltage along with the flexibility of a programmable output voltage. This device offers a fully user-configurable output voltage setting method. The device output voltage can be programmed to any target value from 0.9 to 3.5V in 50mV steps.

.

Very good load and line-transient response

.

Programmable soft-start

.

Power good PG output

.

1.5% Accuracy overline, overload and overtemperature

.

Green product and no Sb/Br
