800 mA同步降压转换器 800-mA SYNCHRONOUS STEP-DOWN CONVERTER
降压 开关稳压器 IC 正 固定 1.8V 1 输出 800mA 10-TFSOP,10-MSOP(0.118",3.00mm 宽)
得捷:
IC REG BUCK 1.8V 800MA 10VSSOP
立创商城:
降压型 Vin=2.7V~10V Vout=1.8V 800mA
德州仪器TI:
1.8-V Output, 800-mA, 10V Vin, 95% Efficient Step-Down Converter in MSOP-10
艾睿:
Adjust the voltage level of your devices with this step down TPS62054DGSR DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 0.8 A. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 10 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. This converter is 93typ % efficient. To produce a constant current at your output, supply your circuit with a load regulation of 0.0045%/mATyp and line regulation of 5.2mV/VTyp. You can operate this at a switching frequency of 1000 kHz. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This converter has an operating temperature range of -40 °C to 85 °C.
安富利:
Conv DC-DC Single Step Down 2.7V to 10V 10-Pin VSSOP T/R
Chip1Stop:
Step-Down Regulator 1.8-V Output, 800-mA, 10V Vin, 95% Efficient Step-Down Converter in MSOP-10 Conv DC-DC Single Step Down 2.7V to 10V 10-Pin VSSOP T/R
Verical:
Conv DC-DC 2.7V to 10V Synchronous Step Down Single-Out 1.8V 0.8A 10-Pin VSSOP T/R
Win Source:

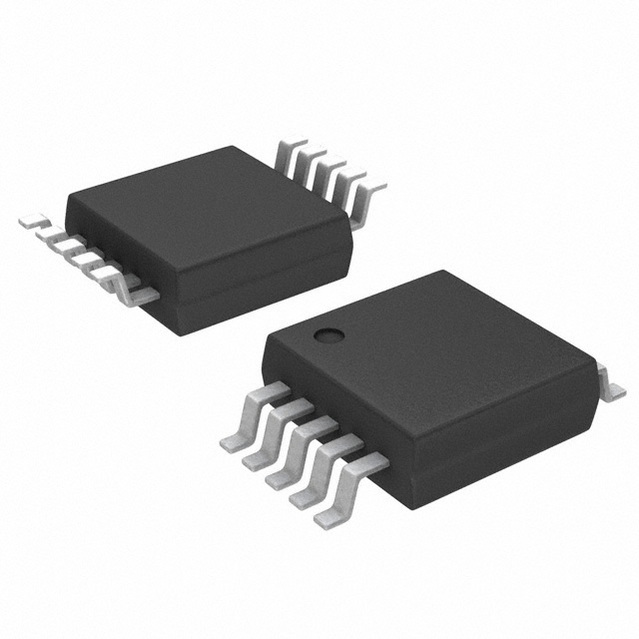

Buck Switching Regulator IC Positive Fixed 1.8V 1 Output 800mA 10-TFSOP, 10-MSOP 0.118", 3.00mm Width
输出接口数 1
输出电压 1.8 V
输出电流 800 mA
静态电流 12.0 µA
调节输出数 1
开关频率 850 kHz
拓扑结构 Buck
输入电压Max 10 V
输入电压Min 2.7 V
输出电压Min 1.8 V
输出电流Max 0.8 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7 V
输入电压 2.7V ~ 10V
安装方式 Surface Mount

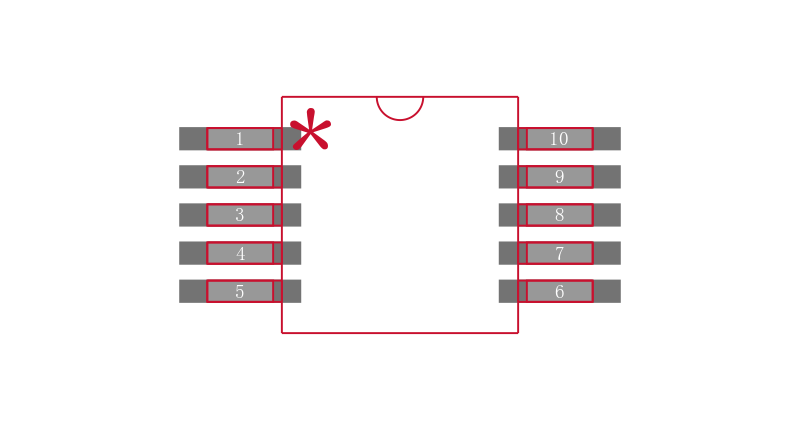

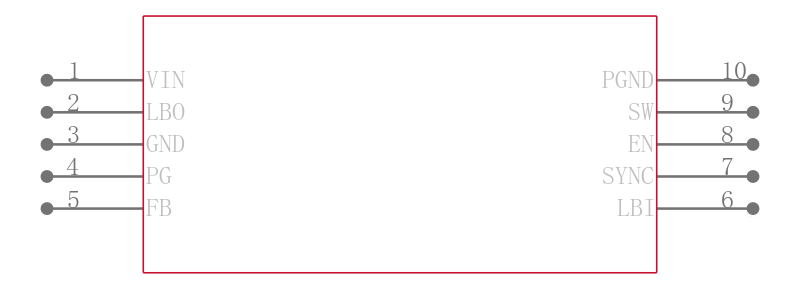

引脚数 10

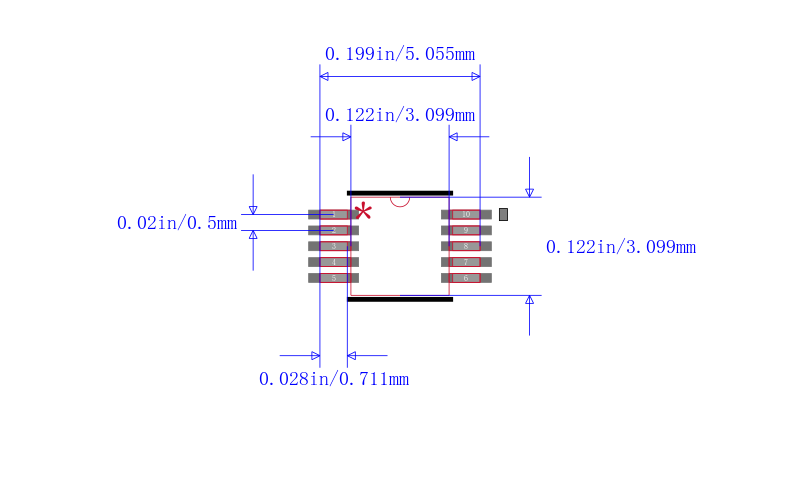

封装 VSSOP-10
封装 VSSOP-10
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS62054DGSR TI 德州仪器 | 当前型号 | 当前型号 |
TPS62054DGS 德州仪器 | 完全替代 | TPS62054DGSR和TPS62054DGS的区别 |
TPS62054DGSG4 德州仪器 | 类似代替 | TPS62054DGSR和TPS62054DGSG4的区别 |
TPS62054DGSRG4 德州仪器 | 类似代替 | TPS62054DGSR和TPS62054DGSRG4的区别 |
