配电开关 POWER-DISTRIBUTION SWITCHES

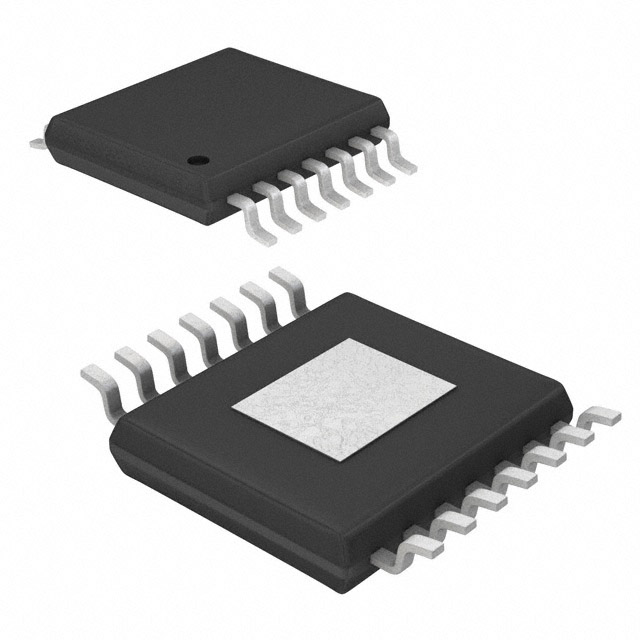

电源开关/驱动器 1:1 N 通道 1.5A 14-HTSSOP
得捷:
IC PWR SWTCH N-CHAN 1:1 14HTSSOP
立创商城:
TPS2013APWPR
德州仪器TI:
5.5-V, 1.5-A, 35-mΩ, load switch
艾睿:
Your system is safe with this TPS2013APWPR load switch from Texas Instruments, protecting you from any abnormal current spikes or short circuiting. This current limited load switch&s;s single output can produce a current up to 1.5 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.7 V that does not exceed 5.5 V. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This current limited load switch has an operating temperature range of -40 °C to 85 °C.
安富利:
Current Limit SW 1-IN 1-OUT 2.7V to 5.5V 1.5A 14-Pin HTSSOP EP T/R
Chip1Stop:
Current Limit SW 1-IN 1-OUT 2.7V to 5.5V 0.6A 14-Pin HTSSOP EP T/R
Verical:
Current Limit SW 1-IN 1-OUT 2.7V to 5.5V 0.6A 14-Pin HTSSOP EP T/R
Newark:
# TEXAS INSTRUMENTS TPS2013APWPR IC HIGH SIDE MOSFET PWR SW 5.5V 14-HTSSOP
DeviceMart:
IC 2.2A POWER DIST SW 14-HTSSOP
Win Source:
IC 2.2A POWER DIST SW 14-HTSSOP
电源电压DC 5.50V max
输出接口数 1
输入电压DC 5.50 V
输出电流 1.5 A
耗散功率 700 mW
静态电流 73.0 µA
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电流Max 1.5 A
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 700 mW
输入电压 5.5 V
安装方式 Surface Mount
引脚数 14
封装 HTSSOP-14
封装 HTSSOP-14
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS2013APWPR TI 德州仪器 | 当前型号 | 当前型号 |
TPS2013AD 德州仪器 | 完全替代 | TPS2013APWPR和TPS2013AD的区别 |
TPS2013APWP 德州仪器 | 完全替代 | TPS2013APWPR和TPS2013APWP的区别 |
TPS2013APWPRG4 德州仪器 | 完全替代 | TPS2013APWPR和TPS2013APWPRG4的区别 |
