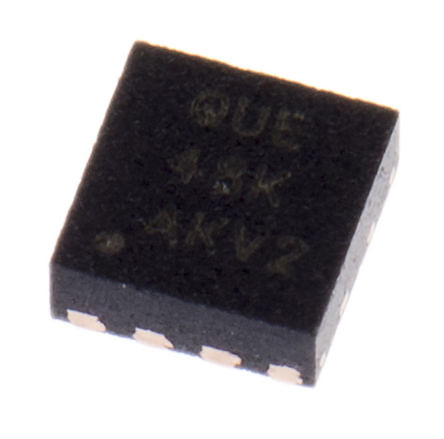

TPS79501DRBT

TEXAS INSTRUMENTS  TPS79501DRBT  电压稳压器, LDO, 可调, 2.7V至5.5V输入, 110mV压差, 1.2V至5.5V/0.5A输出, SON-8

可调 LDO（低压降）线性稳压器，300mA 至 800mA，Texas Instruments

立创商城:
TPS79501DRBT

德州仪器TI:
500-mA, low-dropout voltage regulator with enable

欧时:
### 可调 LDO（低压降）线性稳压器，300mA 至 800mA，Texas Instruments### LDO（低压降）线性稳压器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

得捷:
IC REG LINEAR POS ADJ 500MA 8SON

e络盟:
电压稳压器, LDO, 可调, 2.7V至5.5V输入, 110mV压差, 1.2V至5.5V/0.5A输出, SON-8

艾睿:
Use the LDO TPS79501DRBT linear regulator from Texas Instruments to maintain a constant output voltage. It has an overall accuracy of ±3 %. Its typical dropout voltage at current is 0.105@500mA V. This voltage regulation device&s;s single output can produce a current up to 0.5 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.7 V that does not exceed 5.5 V. With an adjustable output that has a voltage of 1.2 to 5.5 V, this is power management at its best. By operating at a load regulation of 3mVTyp and line regulation of 0.05%/VTyp you can provide a constant voltage at your output. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.

安富利:
LDO Regulator Pos 1.2V to 5.5V 0.5A 8-Pin VSON EP T/R

Chip1Stop:
Single Channel LDO Single Output LDO, 500mA, Adj.1.2 to 5.5V, Low Noise, High PSRR LDO Regulator Pos 1.2V to 5.5V 0.5A 8-Pin VSON EP T/R

Verical:
LDO Regulator Pos 1.2V to 5.5V 0.5A 8-Pin VSON EP T/R

Newark:
# TEXAS INSTRUMENTS  TPS79501DRBT  LDO, 500MA, ADJ, 8-SON

DeviceMart:
IC REG LDO ADJ .5A 8SON
