TPS76850QPWPRQ1

快速瞬态响应1 -A低压差稳压器 FAST-TRANSIENT-RESPONSE 1-A LOW-DROPOUT VOLTAGE REGULATORS

This device is designed to have a fast transient response and be stable with 10 µF capacitors. This combination provides high performance at a reasonable cost.

Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low typically 230 mV at an output current of 1 A for the TPS76850-Q1 and is directly proportional to the output current. Additionally, because the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading typically 85 µA over the full range of output current, 0 mA to 1 A. These two key specifications yield a significant improvement in operating life for battery-powered systems. This LDO family also features a shutdown mode; applying a TTL high signal to the enable EN input shuts down the regulator, reducing the quiescent current to less than 1 µA at TJ = 25°C.

Power good PG is an active-high output, which can be used to implement a power-on reset or a low-battery indicator.

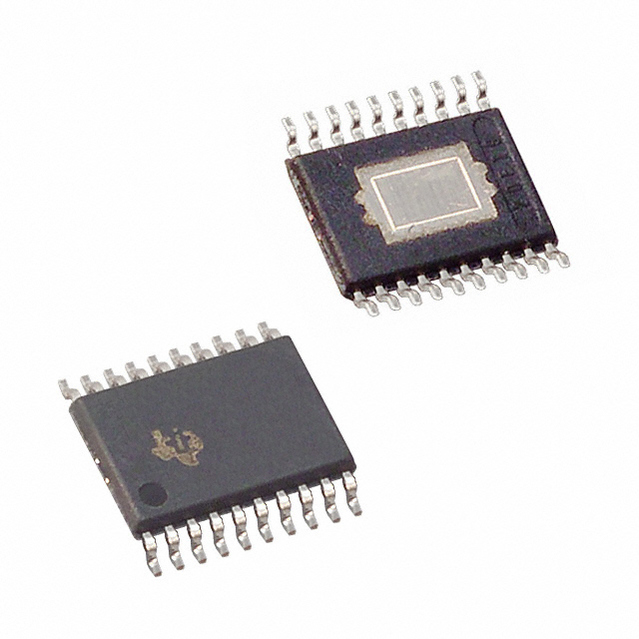

The TPS768xx-Q1 is offered in 1.8-V, 2.5-V, 3.3-V, and 5-V fixed-voltage versions and in an adjustable version programmable over the range of 1.2 V to 5.5 V. Output voltage tolerance is specified as a maximum of 2% over line, load, and temperature ranges. The TPS768xx-Q1 family is available in a 20-pin PWP package.
