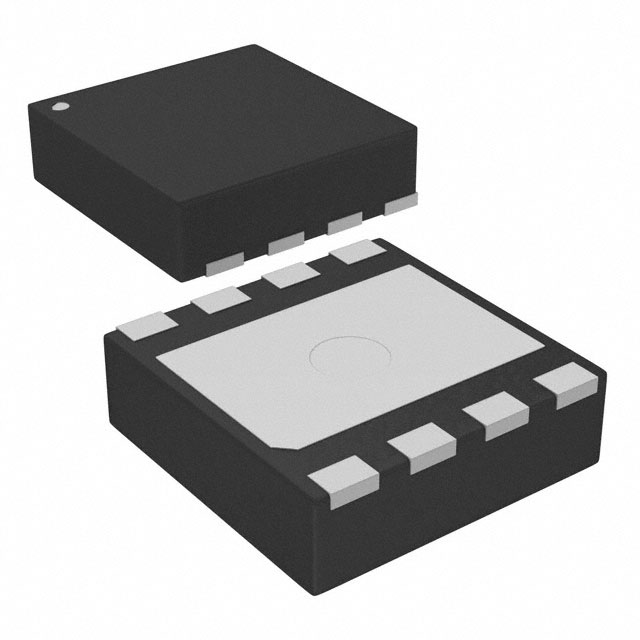

精密可调电流限制的配电开关 PRECISION ADJUSTABLE CURRENT-LIMITED POWER-DISTRIBUTION SWITCHES
Use this usb power distribution switch USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. With a small input voltage of 2.5 V and a max of 6.5 V, this will supply sufficient power to your circuit. Its current limit is 0.5 to 5 A. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This USB powered network switch has an operating temperature range of -40 °C to 85 °C.
输出接口数 1
输出电流 5 A
耗散功率 2403 mW
上升时间 3000 µs
输入电压Max 6.5 V
输入电压Min 2.5 V
输出电流Max 500 mA
输入数 1
下降时间 800 µs
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 2403 mW
输入电压 2.5V ~ 6.5V
安装方式 Surface Mount
引脚数 8

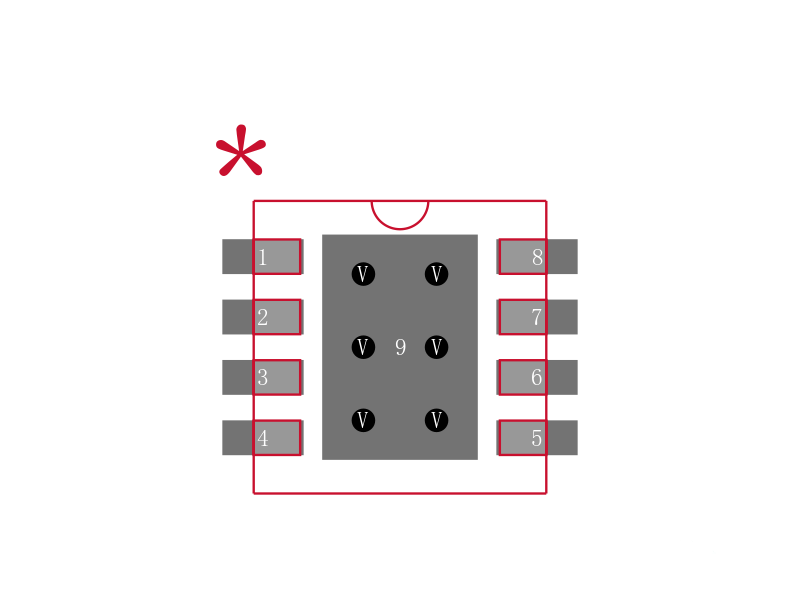

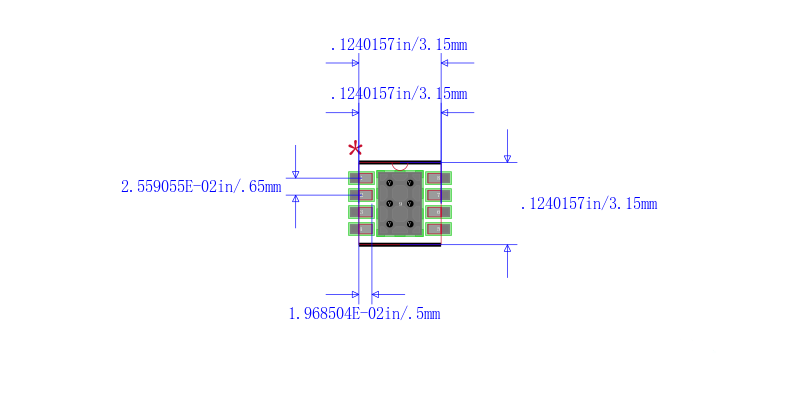

封装 VSON EP-8
封装 VSON EP-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS2556DRBR TI 德州仪器 | 当前型号 | 当前型号 |
TPS2556DRBT 德州仪器 | 功能相似 | TPS2556DRBR和TPS2556DRBT的区别 |
