TEXAS INSTRUMENTS TPS40210DRCT 直流/直流控制器, 电流模式, 4.5V至52V, 1路输出, 升压, 1MHz, SON-10
The is a wide input range current-mode Boost Controller suitable for topologies which require a grounded source N-channel FET including boost, flyback, SEPIC and various LED Driver applications. The device features include programmable soft-start, overcurrent protection with automatic retry and programmable oscillator frequency. current-mode control provides improved transient response and simplified loop compensation. The main difference between the two parts is the reference voltage to which the error amplifier regulates the FB pin.
- .
- Adjustable oscillator frequency
- .
- Fixed frequency current mode control
- .
- Internal slope compensation
- .
- Integrated low-side driver
- .
- Programmable closed-loop soft-start
- .
- Overcurrent protection
- .
- External synchronization capable
- .
- Low current disable function
- .
- Green product and no Sb/Br
频率 1000 kHz
电源电压DC 4.50V min
输出接口数 1
输出电压 5V ~ 260V
输出电流 6 A
供电电流 2.5 mA

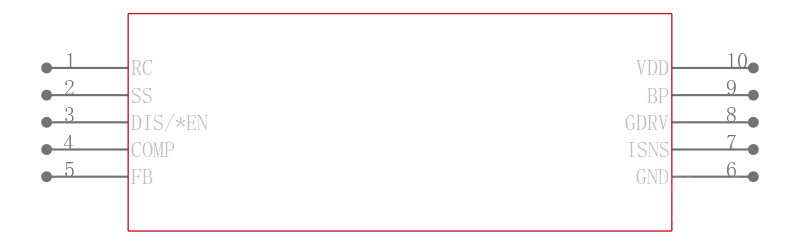

针脚数 10
耗散功率 2.08 W
调节输出数 1
输出功率 2.08 W
开关频率 1 MHz
过温保护 No
拓扑结构 Boost
占空比 95 %
输入电压Max 52 V
输入电压Min 4.5 V
输出电压Max 260 V
输出电压Min 5 V
输出电流Max 6 A
最大占空比 95 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 52V
电源电压Max 52 V
电源电压Min 4.5 V
输入电压 4.5V ~ 52V
安装方式 Surface Mount
引脚数 10

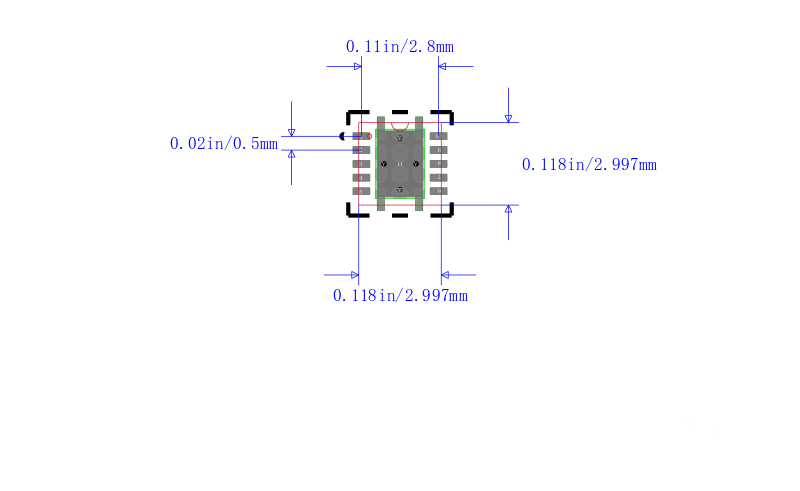

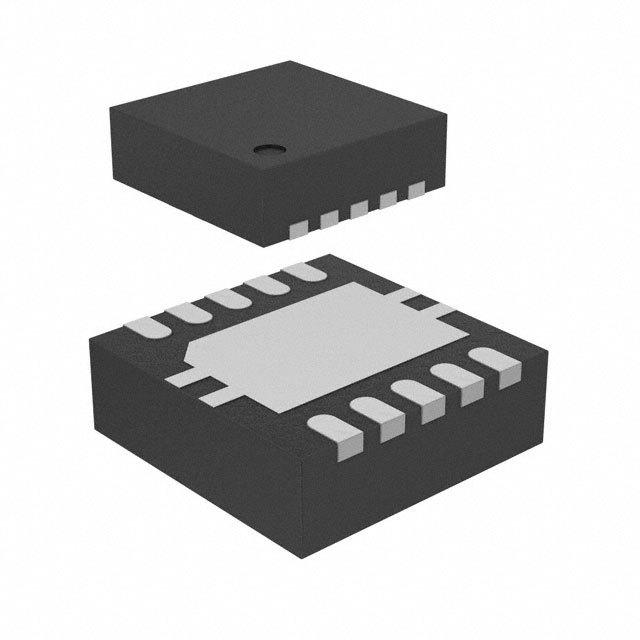

封装 VSON-10
长度 3.1 mm
宽度 3.1 mm
高度 0.95 mm
封装 VSON-10
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TPS40210DRCT TI 德州仪器 | 当前型号 | 当前型号 |
TPS40210DRCR 德州仪器 | 类似代替 | TPS40210DRCT和TPS40210DRCR的区别 |
TPS40210DRCRG4 德州仪器 | 功能相似 | TPS40210DRCT和TPS40210DRCRG4的区别 |
