快速瞬态响应1 -A低压差线性稳压器 FAST-TRANSIENT-RESPONSE 1-A LOW-DROPOUT LINEAR REGULATORS
Never worry about components not turning off and on due to lack of voltage with this LDO linear regulator from Texas Instruments. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.23@1A V. This device has a maximum power dissipation of 7200 mW. This voltage regulation device"s single output can produce a current up to 1 A. With a small input voltage of 2.7 V and a max of 10 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 3mVTyp and line regulation of 0.01%/VTyp. Its maximum power dissipation is 7200 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
输出接口数 1
输出电压 1.8 V
输出电流 1 A
供电电流 125 µA
耗散功率 7.2 W
静态电流 80.0 µA
输出电容类型 Tantalum
跌落电压 0.23V @1A
调节输出数 1
输入电压Max 10 V
输入电压Min 2.7 V
输出电压Min 1.8 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 7200 mW
精度 ±2 %
输入电压 2.7V ~ 10V
安装方式 Surface Mount

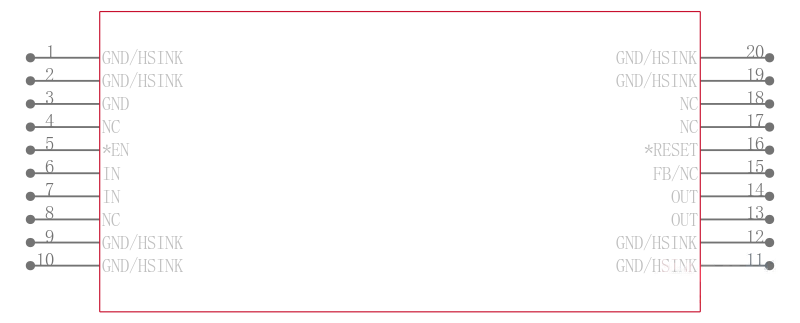

引脚数 20

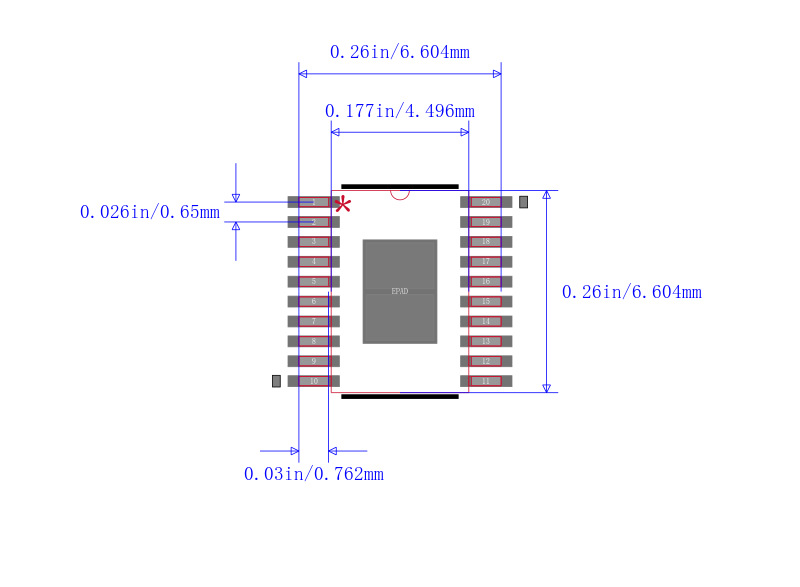

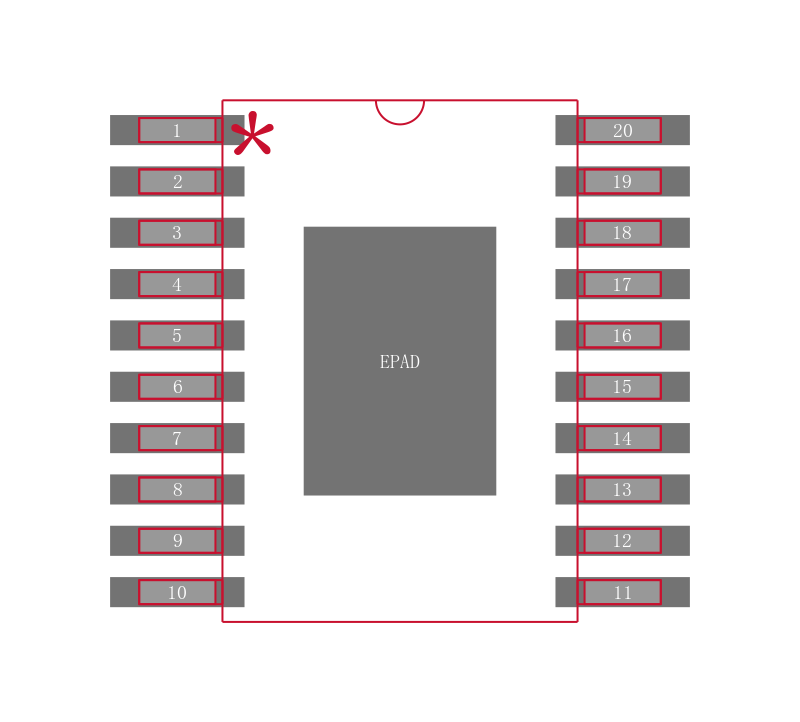

封装 HTSSOP-20
封装 HTSSOP-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS76718QPWPR TI 德州仪器 | 当前型号 | 当前型号 |
TPS76718QPWPG4 德州仪器 | 完全替代 | TPS76718QPWPR和TPS76718QPWPG4的区别 |
TPS76718QPWP 德州仪器 | 类似代替 | TPS76718QPWPR和TPS76718QPWP的区别 |
TPS76718QPWPRG4 德州仪器 | 类似代替 | TPS76718QPWPR和TPS76718QPWPRG4的区别 |
