的ExpressCard TM电源接口开关 ExpressCard TM POWER INTERFACE SWITCH
DESCRIPON
The TPS2231 and TPS2236 ExpressCard power interface switches provide the total power management solution required by the ExpressCard specification. The TPS2231 and TPS2236 ExpressCard power interface switches distribute 3.3 V, AUX, and 1.5 V to the ExpressCard socket. Each voltage rail is protected with integrated current-limiting circuitry.
FEATURES
• Meets the ExpressCard™ Standard ExpressCard|34 or ExpressCard|54
• Compliant with the ExpressCard™ Compliance Checklists
• Fully Satisfies the ExpressCard™ Implementation Guidelines
• Supports Systems with WAKE Function
• TTL-Logic Compatible Inputs
• Short Circuit and Thermal Protection
• –40°C to 85°C Ambient Operating Temperature Range
• Available in a 20-pin TSSOP, a 20-pin QFN, or 24-pin PowerPAD™ HTSSOP Single
• Available in a 32-pin PowerPAD™ HTSSOP Dual
APPLICATIONS
• Notebook Computers
• Desktop Computers
• Personal Digital Assistants PDAs
• Digital Cameras
• TV and Set Top Boxes
输出接口数 3
输入电压DC 3.60 V
输出电流 1.3 A
耗散功率 3277.5 mW
输入电压Min 3 V
输出电流Max 1.3 A
输入数 3
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 3277.5 mW
输入电压 3V ~ 3.6V
安装方式 Surface Mount

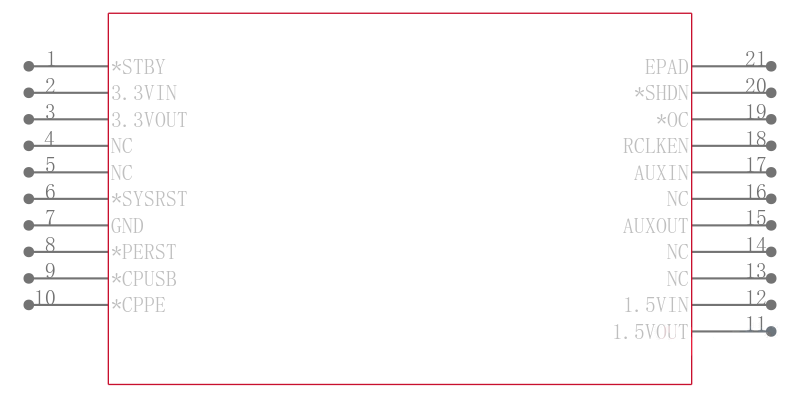

引脚数 20

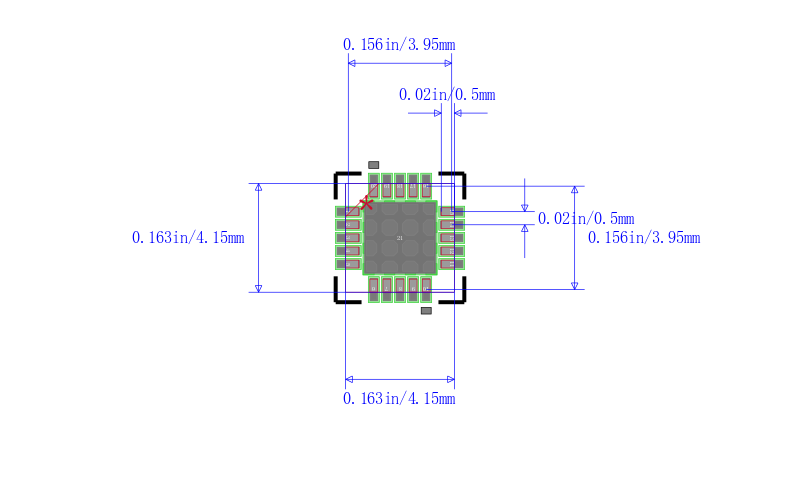

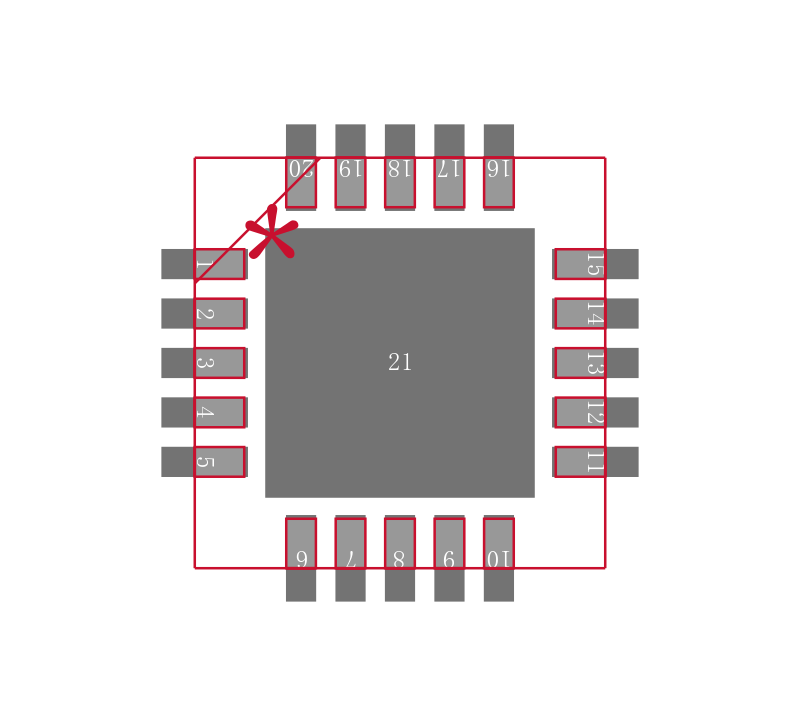

封装 QFN-20
封装 QFN-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS2231RGPR TI 德州仪器 | 当前型号 | 当前型号 |
TPS2231MRGPR 德州仪器 | 完全替代 | TPS2231RGPR和TPS2231MRGPR的区别 |
TPS2231RGPT 德州仪器 | 完全替代 | TPS2231RGPR和TPS2231RGPT的区别 |
TPS2231MRGPT-3 德州仪器 | 完全替代 | TPS2231RGPR和TPS2231MRGPT-3的区别 |
