电源开关 IC - 配电 Auto Cat Pwr Distribution Sw
Use this high side switch and usb power distribution switch USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. Its current limit is 0.9 A. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This USB powered network switch has an operating temperature range of -40 °C to 85 °C.
输出接口数 1
输出电流 0 A
耗散功率 725 mW
上升时间 8600 µs
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电流Max 600 mA
下降时间 3400 µs
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 725 mW
输入电压 2.7V ~ 5.5V
安装方式 Surface Mount
引脚数 8

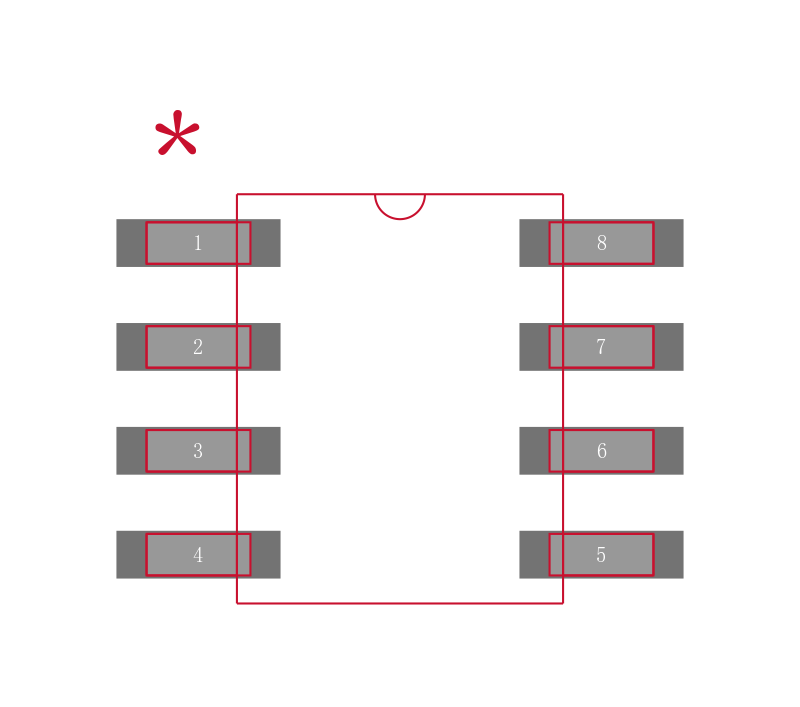

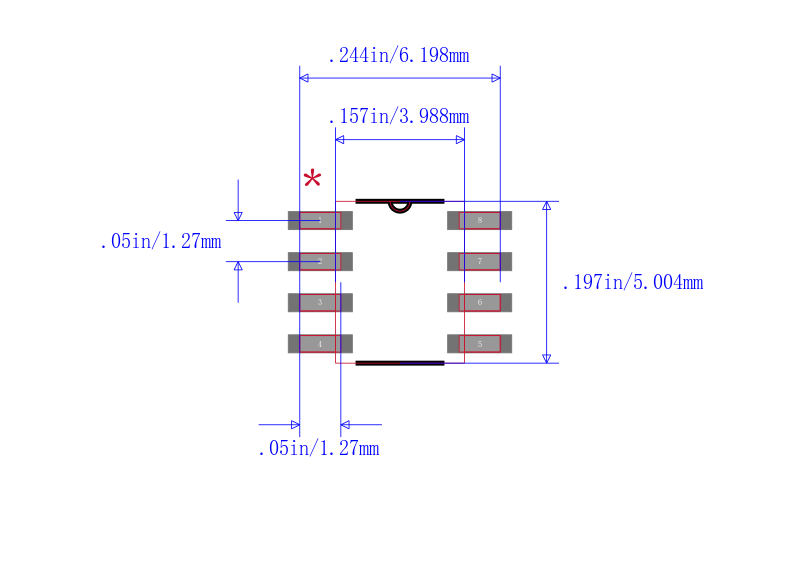

封装 SOIC-8
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
