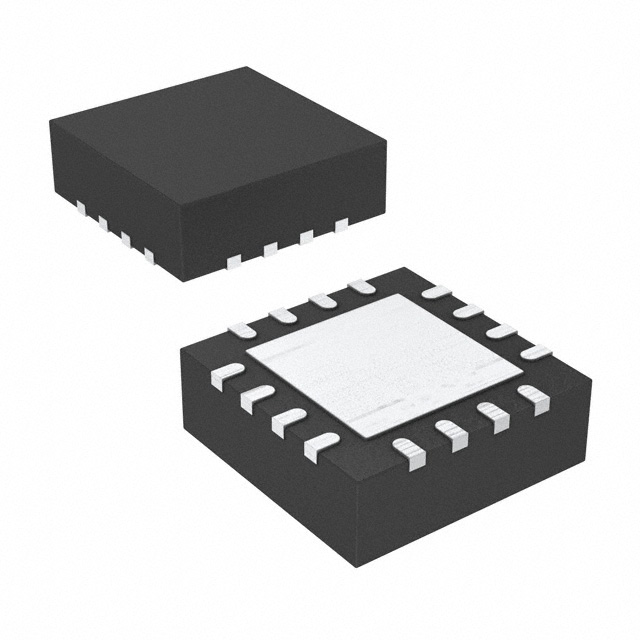

TEXAS INSTRUMENTS TPS61032RSAR 同步升压开关稳压器, 固定, 1.8V-5.5V输入, 5V和4A输出, QFN-16
升压 开关稳压器 IC 正 固定 5V 1 输出 3.6A(开关) 16-VQFN 裸露焊盘
得捷:
IC REG BOOST 5V 3.6A 16QFN
立创商城:
升压型 Vin=1.8V~5.5V Vout=5V 3.6A
德州仪器TI:
5-V Output, 1-A, 96% Efficient Boost Converter w/20uA Iq in TSSOP-16
贸泽:
开关稳压器 5-V Output 1-A Boost Converter
e络盟:
同步升压开关稳压器, 固定, 1.8V-5.5V输入, 5V和4A输出, QFN-16
艾睿:
Adjust the voltage level of your devices with this step up TPS61032RSAR DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 1 A. This will operate at a minimum voltage of 1.8 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.6% and line regulation of 0.6%. This converter is 96 % efficient. You can operate this at a switching frequency of 600Typ kHz. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This converter has an operating temperature range of -40 °C to 85 °C.
安富利:
Conv DC-DC Single Step Up 1.8V to 5.5V 16-Pin VQFN EP T/R
Chip1Stop:
Step-Up Regulator 5-V Output, 1-A, 96% Efficient Boost Converter w/20uA Iq in TSSOP-16 Conv DC-DC 1.8V to 5.5V Step Up Single-Out 5V 1A 16-Pin VQFN EP T/R
Verical:
Conv DC-DC 1.8V to 5.5V Synchronous Step Up Single-Out 5V 1A 16-Pin VQFN EP T/R
Newark:
# TEXAS INSTRUMENTS TPS61032RSAR Synchronous Boost Step Up Switching Regulator, Fixed, 1.8V-5.5V In, 5V And 4A Out, 600 kHz, QFN-16
Win Source:
Boost Switching Regulator IC Positive Fixed 5V 1 Output 3.6A Switch 16-VQFN Exposed Pad
DeviceMart:
IC REG BOOST SYNC 5V 4A 16VQFN
输出接口数 1
输出电压 5 V
输出电流 4 A
针脚数 16
静态电流 20.0 µA
调节输出数 1
开关频率 600 kHz
拓扑结构 Boost
输入电压Max 5.5 V
输入电压Min 1.8 V
输出电压Min 5 V
输出电流Max 1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.8 V
输入电压 1.8V ~ 5.5V
安装方式 Surface Mount
引脚数 16
封装 VQFN-16
长度 4 mm
宽度 4 mm
高度 0.9 mm
封装 VQFN-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电源管理, 音频, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS61032RSAR TI 德州仪器 | 当前型号 | 当前型号 |
TPS61032RSA 德州仪器 | 完全替代 | TPS61032RSAR和TPS61032RSA的区别 |
TPS61032RSARG4 德州仪器 | 类似代替 | TPS61032RSAR和TPS61032RSARG4的区别 |
