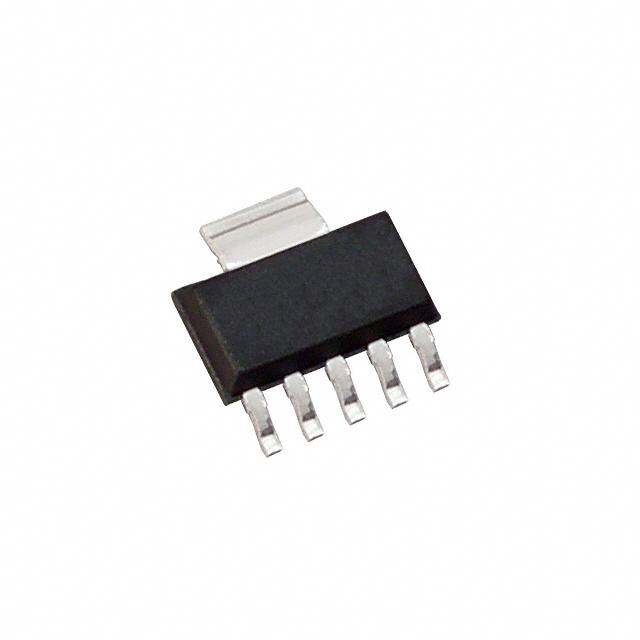

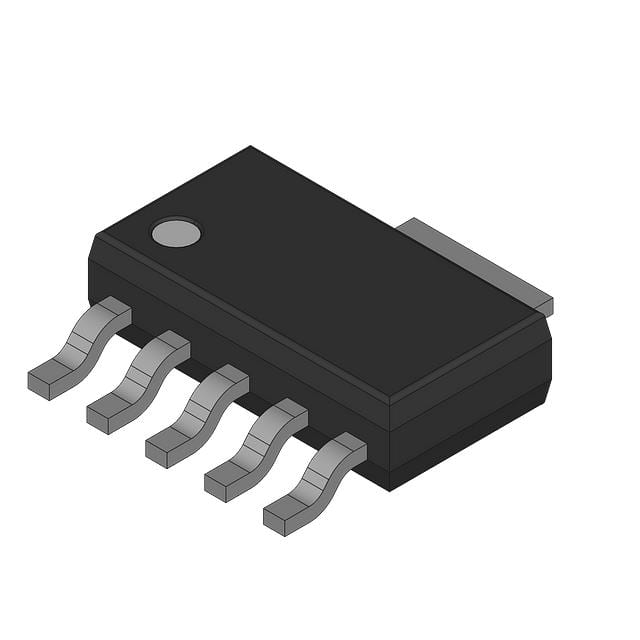

具有反向电流保护功能的汽车类 400mA、高精度、低压降稳压器 6-SOT-223 -40 to 125
The TPS736xx-Q1 family of low-dropout LDO linear voltage regulators uses a new topology: an NMOS pass element in a voltage-follower configuration. This topology is stable using output capacitors with low ESR, and even allows operation without a capacitor. It also provides high reverse blockage low reverse current and ground pin current that is nearly constant over all values of output current.
The TPS736xx-Q1 uses an advanced BiCMOS process to yield high precision while delivering very low dropout voltages and low ground pin current. Current consumption, when not enabled, is under 1 µA and ideal for portable applications. The extremely low output noise 30 µ VRMS with 0.1-µF CNR is ideal for powering VCOs. These devices are protected by thermal shutdown and foldback current limit.
输出接口数 1
输出电压 1.8 V
输出电流 400 mA
供电电流 550µA ~ 1mA
静态电流 0.4 mA
输出电容类型 Ceramic
跌落电压 0.075V @400mA
调节输出数 1
输入电压Max 5.5 V
输入电压Min 1.7 V
输出电压Min 1.8 V
输出电流Max 0.4 A
精度 ±1 %
输入电压 1.7V ~ 5.5V
安装方式 Surface Mount
封装 SOT-223-6
封装 SOT-223-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS73618QDCQRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TPS73618DCQR 德州仪器 | 类似代替 | TPS73618QDCQRQ1和TPS73618DCQR的区别 |
TPS73618DCQ 德州仪器 | 类似代替 | TPS73618QDCQRQ1和TPS73618DCQ的区别 |
TPS73618DCQRG4 德州仪器 | 类似代替 | TPS73618QDCQRQ1和TPS73618DCQRG4的区别 |
