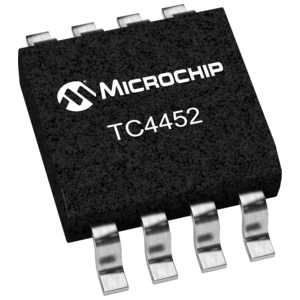

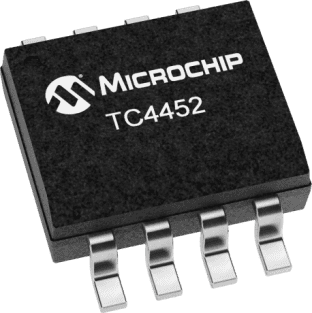

TC4452VOA713

TC4452系列 13A 18V最高电压 1.5Ohm 单通道 低边 MOSFET驱动器-SOIC-8

**General Description**

The TC4451/TC4452 are single-output MOSFET drivers. These devices are high-current buffer/drivers capable of driving large MOSFETs and Insulated Gate Bipolar Transistors IGBTs. The TC4451/TC4452 have matched output rise and fall times, as well as matched leading and falling-edge propagation delay times. The TC4451/TC4452 devices also have very low cross conduction current, reducing the overall power dissipation of the device.

**Features**

High Peak Output Current: 13A typ.

Low Shoot-Through/Cross-Conduction Current in Output Stage

Wide Input Supply Voltage Operating Range: \- 4.5V to 18V

High Continuous Output Current: 2.6A max.

Matched Fast Rise and Fall Times:

\- 21 ns with 10,000 pF Load

\- 42 ns with 22,000 pF Load

Matched Short Propagation Delays: 44 ns typ.

Low Supply Current:

\- With Logic ë1í Input ñ 140 μA typ.

\- With Logic ë0í Input ñ 40 μA typ.

Low Output Impedance: 0.9Ω typ.

Latch-Up Protected: Will Withstand 1.5A Output Reverse Current

Input Will Withstand Negative Inputs Up To 5V

Pin-Compatible with the TC4420/TC4429, TC4421/TC4422 and TC4421A/TC4422A MOSFET Drivers

Space-Saving, Thermally-Enhanced, 8-Pin DFN Package

**Applications**

Line Drivers for Extra Heavily-Loaded Lines

Pulse Generators

Driving the Largest MOSFETs and IGBTs

Local Power ON/OFF Switch

Motor and Solenoid Driver

LF Initiator
