电源开关 IC - POE / LAN IEEE 802.3af PoE Pwr Device Cntrler
以太网供电控制器(PoE) 通道 802.3af(PoE) 8-TSSOP
得捷:
IC POE CNTRL 1 CHANNEL 8TSSOP
立创商城:
TPS2375PWR
德州仪器TI:
Class 3 PoE PD with latch protection
贸泽:
电源开关 IC - POE / LAN IEEE 802.3af PoE Pwr Device Cntrler
艾睿:
Power Over Ethernet PD Controller 0V 57V 13W 8-Pin TSSOP
安富利:
Power Controller 8-Pin TSSOP T/R
Chip1Stop:
Power Controller 8-Pin TSSOP T/R
Verical:
Power Over Ethernet PD Controller 0V 57V 13W 8-Pin TSSOP
Win Source:
Power Over Ethernet Controller 1 Channel 802.3af PoE 8-TSSOP
电源电压DC 0.00Vmin, 57.0Vmax
输入电压DC 57.0 V
输出电流 350 mA
供电电流 240 µA
通道数 1
输出功率 12.95 W
输入电压Max 57 V
输入电压Min 0 V
输出功率Max 13 W
额定功率Max 12.95 W
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0V ~ 57V
安装方式 Surface Mount
引脚数 8

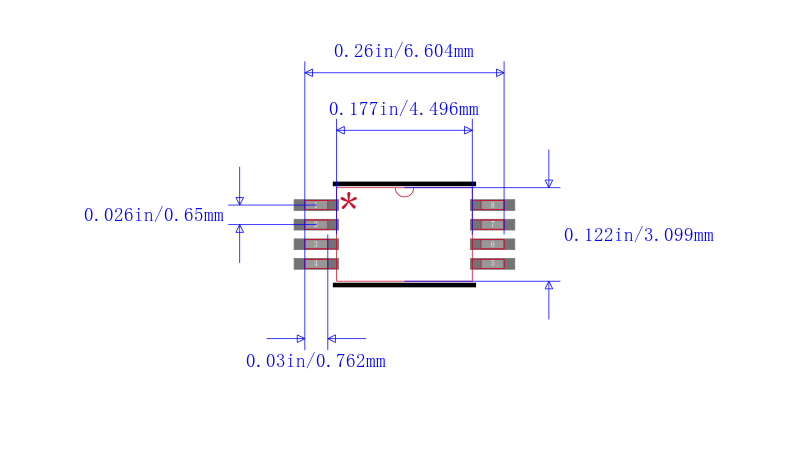

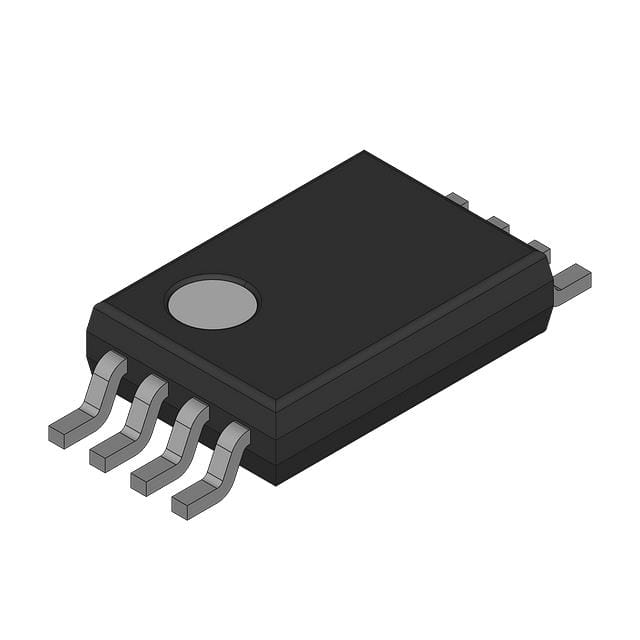

封装 TSSOP-8
封装 TSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS2375PWR TI 德州仪器 | 当前型号 | 当前型号 |
TPS2375PWRG4 德州仪器 | 完全替代 | TPS2375PWR和TPS2375PWRG4的区别 |
TPS2375PWG4 德州仪器 | 完全替代 | TPS2375PWR和TPS2375PWG4的区别 |
TPS2375PW 德州仪器 | 类似代替 | TPS2375PWR和TPS2375PW的区别 |
