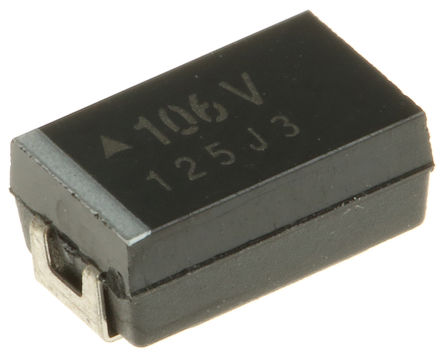

THJD106K035RJN

AVX  THJD106K035RJN  表面贴装钽电容, THJ系列, 10 µF, ± 10%, 35 V, 2917 [7343 公制], D

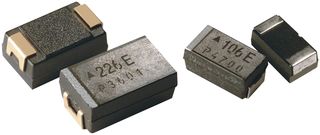

THJ 系列

150°C 操作（降额电压条件）

高可靠性（0.5%/1000 小时 @ 85°C）

黑色封装，带白色标记

非常适合汽车和其他高温应用

容差 10%

欧时:
### THJ 系列150°C 操作（降额电压条件） 高可靠性（0.5%/1000 小时 @ 85°C） 黑色封装，带白色标记 非常适合汽车和其他高温应用 电容容差 10% 尺寸 mm --- 外壳代码 | L | W | H | W1 | A 容差 | ±0.2 | +0.2/-0.1 | +0.2/-0.1 | ±0.2 | ±0.3 A | 3.2 | 1.6 | 1.6 | 1.2 | 0.8 B | 3.5 | 2.8 | 1.9 | 2.2 | 0.8 C | 6.0 | 3.2 | 2.6 | 2.2 | 1.3 D | 7.3 | 4.3 | 2.9 | 2.4 | 1.3 ![http://china.rs-online.com/largeimages/L405941-01.gif]http://china.rs-online.com/largeimages/L405941-01.gif ### 表面安装 85 ° C

得捷:
CAP TANT 10UF 10% 35V 2917

e络盟:
表面贴装钽电容, 10 µF, 35 V, 2917 [7343 公制], THJ 系列, ± 10%, -55 °C

艾睿:
This THJD106K035RJN solid tantalum capacitor from AVX offers higher stability than aluminum capacitors. It can withstand a voltage of 35 VDC. Its leakage current is 3.5 μA. This solid capacitor has a maximum operating temperature of 175 °C. It has a tolerance of 10%. This product is 7.3 mm long, 2.9 mm tall and 4.3 mm deep. Its capacitance value is 10uF.

Allied Electronics:
10uF SMD Solid MnO2 Tantalum Electrolytic Capacitor, 35 V dc +/-10%, THJ Series

安富利:
Cap Tant Solid 10uF 35V D CASE 10% 7.3 X 4.3 X 2.9mm SMD 7343-31 1 Ohm 175°C T/R

Verical:
Cap Tant Solid 10uF 35V D CASE 10% 7.3 X 4.3 X 2.9mm Inward L SMD 7343-31 1 Ohm 175C Automotive T/R

Newark:
# AVX  THJD106K035RJN  Surface Mount Tantalum Capacitor, 10 µF, 35 V, THJ Series, ± 10%, 2917 [7343 Metric]

儒卓力:
**TC 10uF 35V 10% Case D Autom. **
