具有超低静态电流和负载开关的高效降压转换器 8-DSBGA -40 to 125
The TPS62748 is a high efficiency step down converter with ultra low quiescent current of typical 360 nA. The device is optimized to operate with a 2.2-µH inductor and 10µF output capacitor. The device uses DCS-Control™ and operates with a typical switching frequency of 1.2 MHz. In Power Save Mode the device extends the light load efficiency down to a load current range of 10-µA and below. TPS62748 provides an output current of 300 mA. Once started the device operates down to an input voltage range of 2.0 V. This allows to operate the device directly from a single Li-MnO2 coin cell.
The TPS62748 provides two programmable output voltages of 1.2V and 1.8V selectable by one voltage select pin. The TPS62748 is optimized to provide a low output voltage ripple and low noise using a small output capacitor. Once the input voltage comes close to the output voltage the device enters the No Ripple 100% mode to prevent an increase of output ripple voltage. In this operation mode the device stops switching and turns the high side MOSFET switch on.
The TPS62748 has a 100 mA load switch between pins VOS and LOAD with a typical ON-resistance of 0.6 Ohm. The load switch is typically used to distribute the buck converter output voltage to the sub-system.
输出接口数 1
输出电流 0.3 A
静态电流 360 nA
调节输出数 1
开关频率 1.2 MHz
拓扑结构 Buck
开关电流 0.6 A
输入电压Max 5.5 V
输入电压Min 2.15 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min 40 ℃
输入电压 5.5 V
安装方式 Surface Mount
引脚数 8

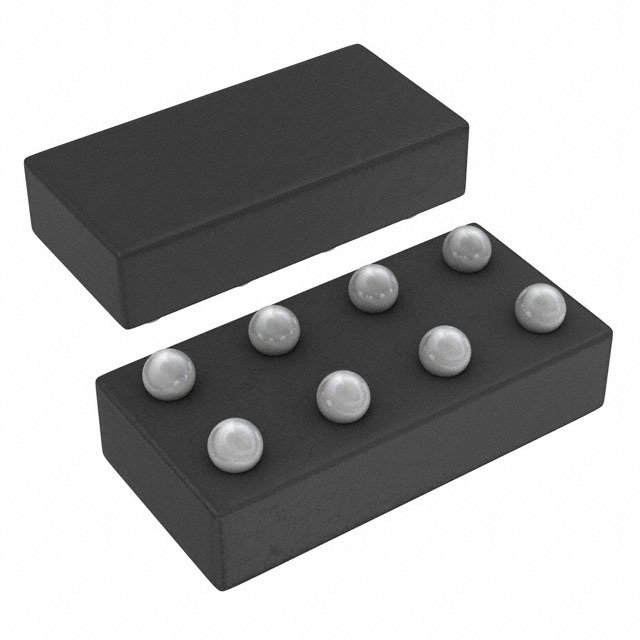

封装 XFBGA-8
封装 XFBGA-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS62748YFPR TI 德州仪器 | 当前型号 | 当前型号 |
TPS62748YFPT 德州仪器 | 类似代替 | TPS62748YFPR和TPS62748YFPT的区别 |
