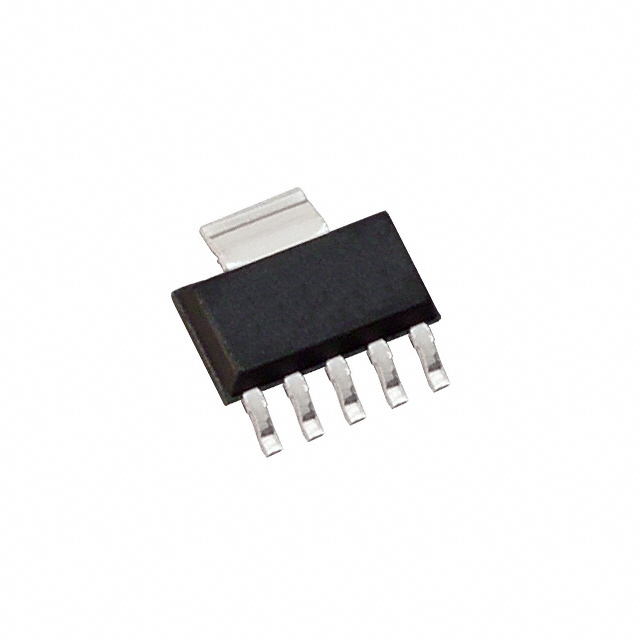

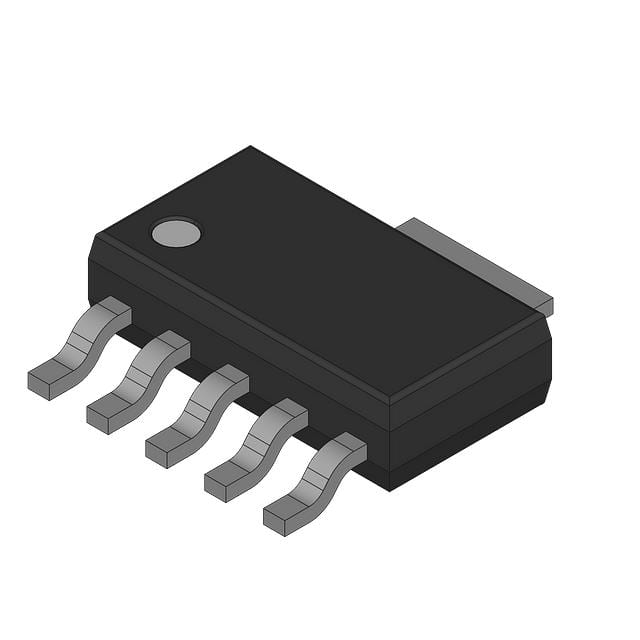

TPS73630DCQ

无电容， NMOS ， 400毫安低压差稳压器，反向电流保护 Cap-Free, NMOS, 400mA Low-Dropout Regulator with Reverse Current Protection

PMIC - 稳压器 - 线性 正 固定 输出 400mA SOT-223-6

立创商城:
TPS73630DCQ

德州仪器TI:
400-mA, high-accuracy, ultra-low-dropout voltage regulator with reverse current protection & enable

得捷:
IC REG LINEAR 3V 400MA SOT223-6

贸泽:
低压差稳压器 Cap-Free NMOS 400mA

艾睿:
Make a theoretical system actual by providing stable voltages with this LDO TPS73630DCQ linear regulator from Texas Instruments. It has an overall accuracy of ±0.5 %. Its typical dropout voltage at current is 0.075@400mA V. This voltage regulation device&s;s single output can produce a current up to 0.4 A. The best way to provide power to your application is by using this, which needs a voltage of at least 1.7 V and no higher than 5.5 V. With a fixed output that has a voltage of 3 V, this is power management at its best. At a load regulation of 0.002%/mATyp and line regulation of 0.01%/VTyp a constant current can be produced at the output of your circuit. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The maximum dropout voltage is 0.2@400mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.

安富利:
LDO Regulator Pos 3V 0.4A 6-Pin5+Tab SOT-223 Tube

Chip1Stop:
Single Channel LDO Single Output LDO, 400mA, Fixed3.0V, Cap free, Low Noise, Reverse Current Protection LDO Regulator Pos 3V 0.4A 6-Pin5+Tab SOT-223 Tube

Verical:
LDO Regulator Pos 3V 0.4A 6-Pin5+Tab SOT-223 Tube
