1.5 A , 42V降压SWIFT ™ DC / DC具有Eco-Mode ™转换器 1.5-A, 42V STEP DOWN SWIFT™ DC/DC CONVERTER WITH ECO-MODE™
Description
The TPS54140 device is a 42-V, 1.5-A, step-down regulator with an integrated high-side MOSFET.
Current mode control provides simple external compensation and flexible component selection. A
low-ripple pulse-skip mode reduces the no load, regulated output-supply current to 116 μA. Using the
enable pin, the shutdown supply current is reduced to 1.3 μA.
Features
• 3.5- to 42-V Input Voltage Range
• 200-mΩ High-Side MOSFET
• High Efficiency at Light Loads with a Pulse Skipping Eco-mode™
• 116-μA Operating Quiescent Current
• 1.3-μA Shutdown Current
• 100-kHz to 2.5-MHz Switching Frequency
• Synchronizes to External Clock
• Adjustable Slow Start and Sequencing
• UV and OV Power-Good Output
• Adjustable UVLO Voltage and Hysteresis
• 0.8-V Internal Voltage Reference
• MSOP10 Package With PowerPAD™
• Supported by WEBENCH® Software Tool www..com/WEBENCH
Applications
• 12-V and 24-V Industrial and Commercial Low Power Systems
• Aftermarket Auto Accessories: Video, GPS, Entertainment
输出接口数 1
输出电压 0.8V ~ 39V
输出电流 1.5 A

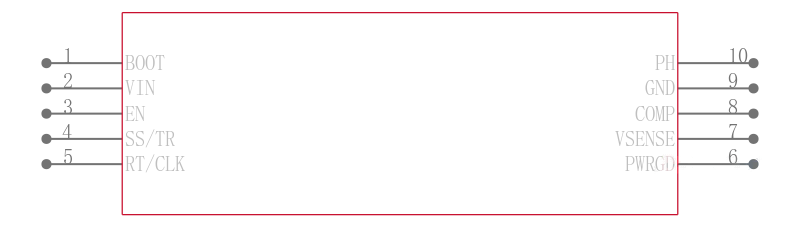

针脚数 10
静态电流 116 µA
调节输出数 1
开关频率 100kHz ~ 2.5MHz
过温保护 Yes
拓扑结构 Buck
输入电压Max 42 V
输入电压Min 3.5 V
输出电压Max 39 V
输出电压Min 0.8 V
输出电流Max 1.2 A
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 3.5V ~ 42V
输入电压 3.5V ~ 42V
安装方式 Surface Mount
引脚数 10

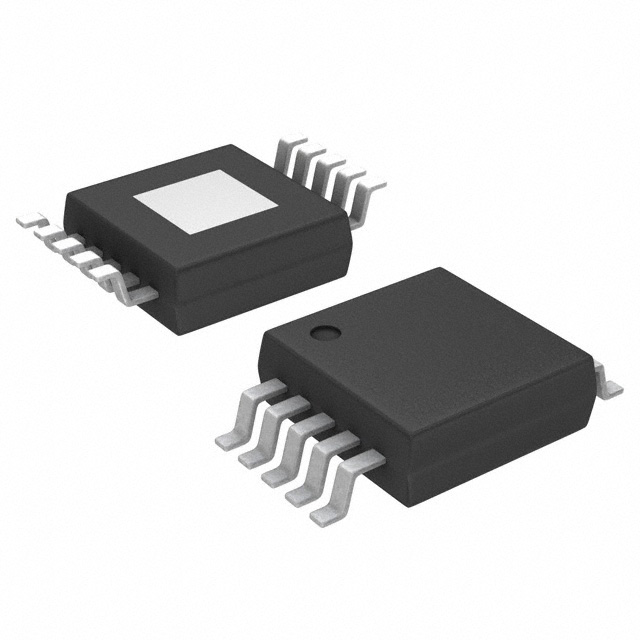

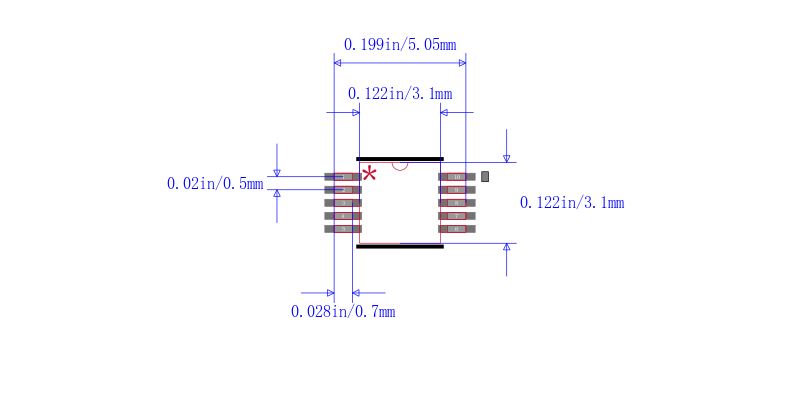

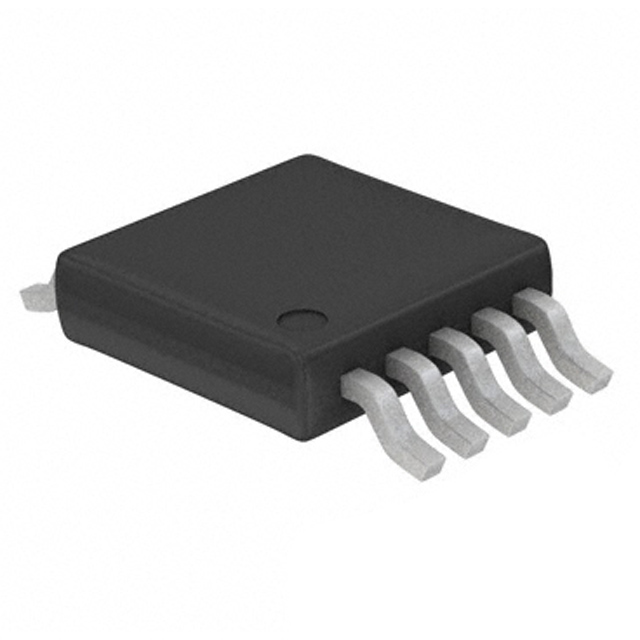

封装 PowerPad-MSOP-10
封装 PowerPad-MSOP-10
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 传感与仪器, 成像, 视频和目视, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS54140DGQR TI 德州仪器 | 当前型号 | 当前型号 |
TPS54140QDGQRQ1 德州仪器 | 完全替代 | TPS54140DGQR和TPS54140QDGQRQ1的区别 |
TPS54160QDGQRQ1 德州仪器 | 类似代替 | TPS54140DGQR和TPS54160QDGQRQ1的区别 |
