300 - mA的40 -V低压降了25 μA静态电流稳压器 300-mA 40-V LOW-DROPOUT REGULATOR WITH 25-μA QUIESCENT CURRENT
The TPS7A60xx-Q1 and TPS7A61xx-Q1 comprise a family of low-dropout linear voltage regulators designed for low power consumption and quiescent current less than 25 µA in light-load applications. These devices feature integrated overcurrent protection and are designed to achieve stable operation even with low-ESR ceramic capacitors. Power-on-reset delay is implemented during device start-up to indicate that the output voltage is stable and in regulation. The power-on-reset delay is fixed 250 µs typical, and can also be programmed by an external capacitor. A low-voltage tracking feature allows for a smaller input capacitor and can possibly eliminate the need of using a boost converter during cold-crank conditions. Because of these features, these devices are well-suited in power supplies for various automotive applications.
输出接口数 1
输出电压 5 V
输出电流 300 mA
供电电流 40 µA
耗散功率 4.27 W
静态电流 20.0 µA
输出电容类型 Ceramic
跌落电压 300 mV
调节输出数 1
输入电压Max 40 V
输入电压Min 4 V
输出电压Min 5 V
输出电流Max 0.3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 4270 mW
精度 ±2 %
输入电压 5.3V ~ 40V
安装方式 Surface Mount
引脚数 5

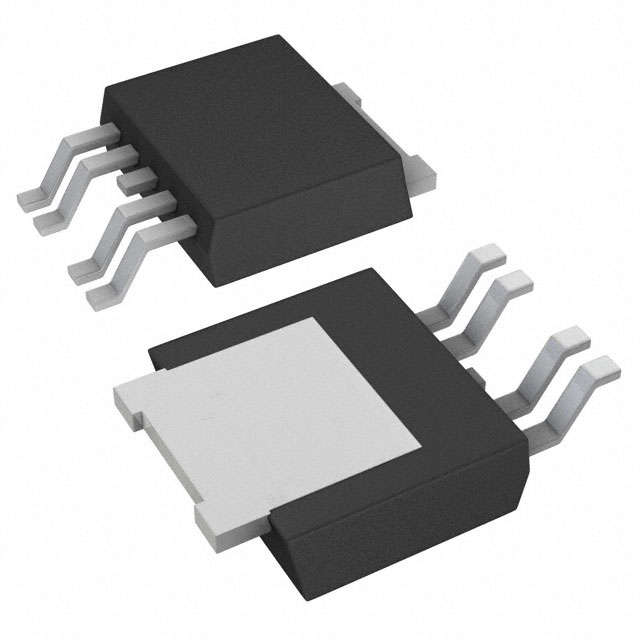

封装 TO-252-5
封装 TO-252-5
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS7A6050QKVURQ1 TI 德州仪器 | 当前型号 | 当前型号 |
TLE7270D 英飞凌 | 功能相似 | TPS7A6050QKVURQ1和TLE7270D的区别 |
TLE7270DNTMA1 英飞凌 | 功能相似 | TPS7A6050QKVURQ1和TLE7270DNTMA1的区别 |
TPS7A6050QKVUQ1 德州仪器 | 功能相似 | TPS7A6050QKVURQ1和TPS7A6050QKVUQ1的区别 |
