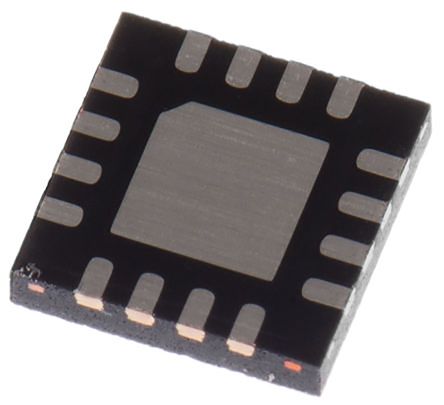

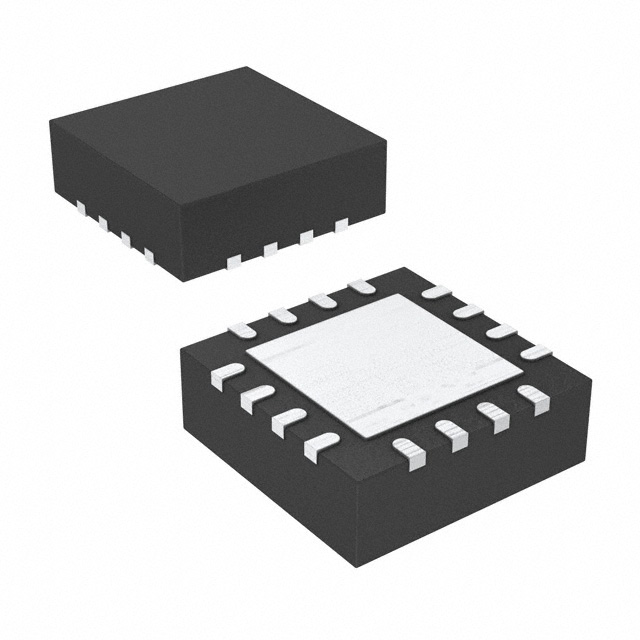

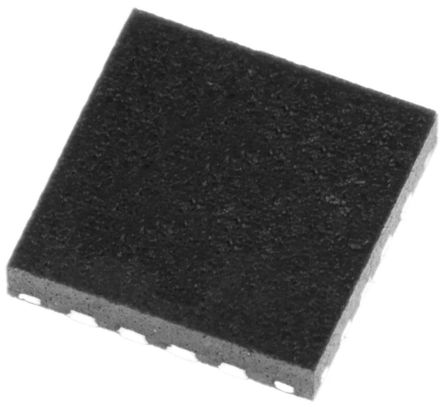

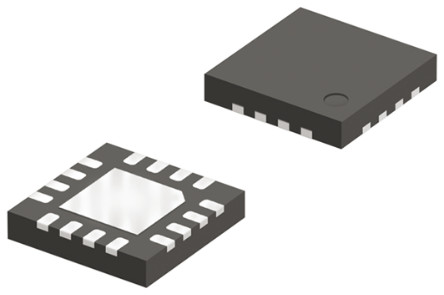

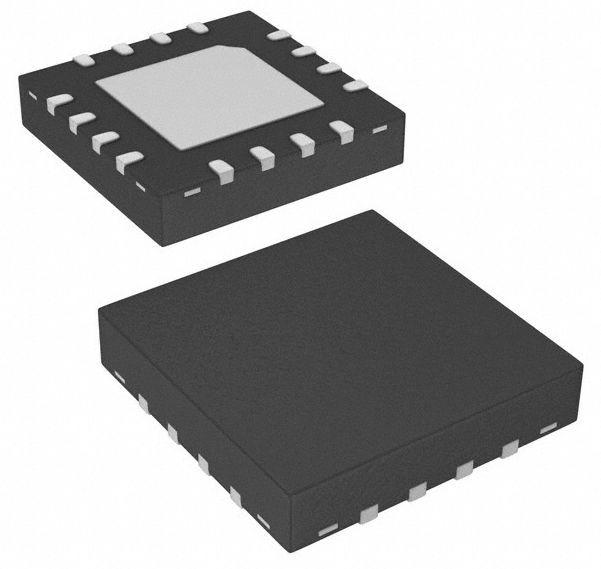

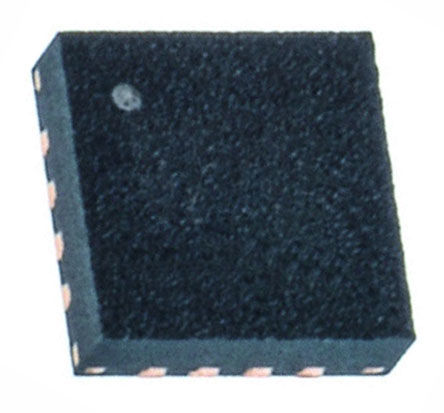

TPS62112RSAT

Step-Down DC/DC Converters Integrated Switch 9V to 30V Input Max., Texas Instruments### 直流/直流开关调节器转换器（集成开关），Texas InstrumentsTexas Instruments 的此系列高度集成的高效开关稳压器包括步升（升压）、步降（降压）、步升/降（增压/降压）和反相类型，为每个直流稳压器应用提供高效的解决方案。

The is a synchronous Step-down DC-to-DC Converter ideally suited for systems powered from a 2- to 4-cell Li-ion battery or from a 12 or 15V rail. The TPS6211x series device is synchronous pulse width modulation PWM converters with integrated N- and P-channel power MOSFET switches. Synchronous rectification is used to increase efficiency and to reduce external component count. To achieve highest efficiency over a wide load-current range, the converter enters a power-saving, pulse frequency modulation PFM mode at light load currents. Operating frequency is typically 1MHz, allowing the use of small inductor and capacitor values. The device can be synchronized to an external clock signal in the range of 0.8 to 1.4MHz. For low-noise operation, the converter can be operated in PWM-only mode. In shutdown mode, the current consumption is reduced to less than 2µA.

.

High-efficiency synchronous step-down converter with up to 95% efficiency

.

High efficiency over a wide load-current range due to PFM/PWM operation mode

.

Overtemperature and overcurrent protected

.

20µA Typical quiescent current

.

100% Maximum duty cycle for lowest dropout

.

Green product and no Sb/Br
