TPS61032PWPR

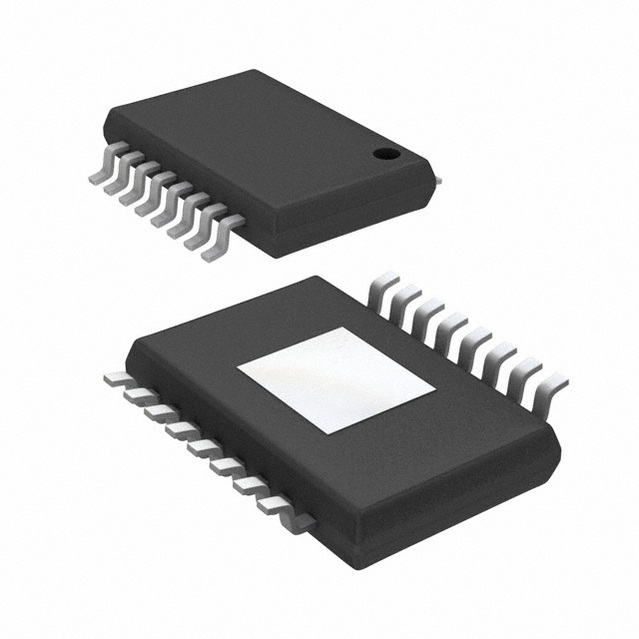

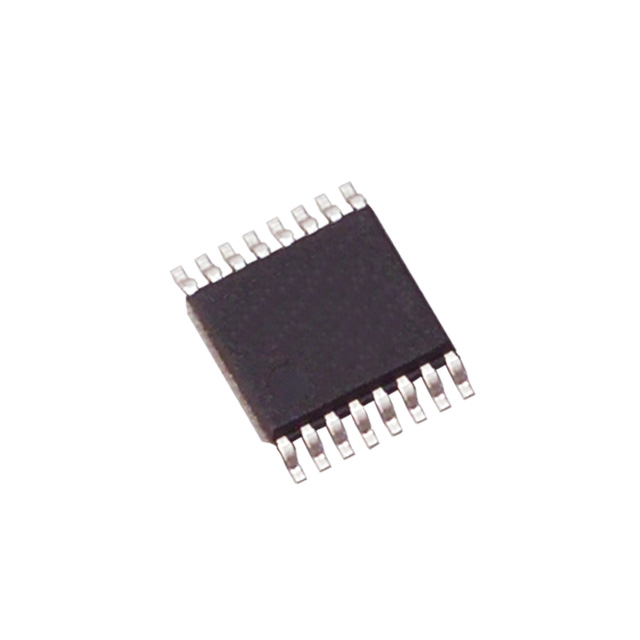

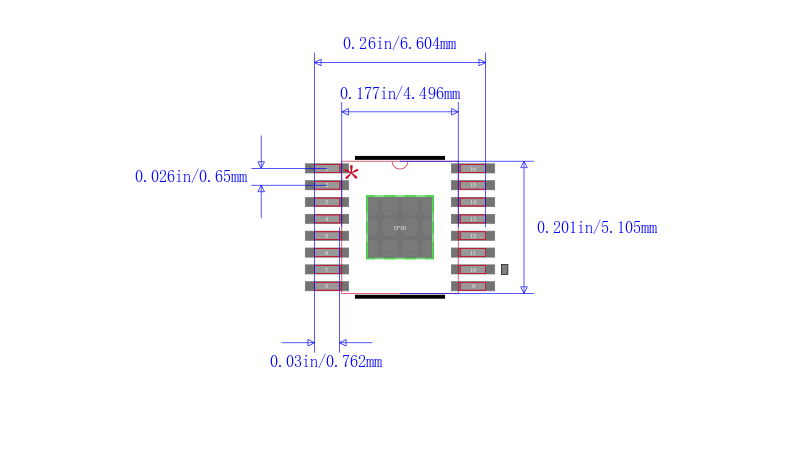

TEXAS INSTRUMENTS  TPS61032PWPR  同步升压开关稳压器, 固定, 1.8V-5.5V输入, 5V和4A输出, HTSSOP-16

The is a 96% Efficient Boost Converter with 20µA Iq. It provides a power supply solution for products powered by either a one-cell Li-ion or Li-polymer or a two to three-cell alkaline, NiCd or NiMH battery. The converter generates a stable output voltage that is either adjusted by an external resistor divider or fixed internally on the chip. It provides high efficient power conversion and is capable of delivering output currents up to 1A at 5V at a supply voltage down to 1.8V. The implemented boost converter is based on a fixed frequency, pulse-width- modulation PWM controller using a synchronous rectifier to obtain maximum efficiency. At low load currents the converter enters power save mode to maintain a high efficiency over a wide load current range. The power save mode can be disabled, forcing the converter to operate at a fixed switching frequency. It can also operate synchronized to an external clock signal that is applied to the SYNC pin.

.

96% Efficient synchronous boost converter with 1000mA output current from 1.8V input

.

20µA Typical device quiescent current

.

Fixed and adjustable output voltage options up to 5.5V

.

Power save mode for improved efficiency at low output power

.

Low battery comparator

.

Low EMI-converter integrated anti-ringing switch

.

Load disconnect during shutdown

.

Over-temperature protection

.

Green product and no Sb/Br

This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
