开关稳压器 Low Volt Front-end Power Management IC
The TPS6128xA device provides a power supply solution for products powered by either by a Li-Ion, Nickel-Rich, Silicon Anode, Li-Ion or LiFePO4 battery. The voltage range is optimized for single-cell portable applications like in smart-phones or tablet PCs.
Used as a high-power pre-regulator, the TPS6128xA extends the battery run-time and overcomes input current- and voltage limitations of the powered system.
While in shutdown, the TPS6128xA operates in a true pass-through mode with only 3µA quiescent consumption for longest battery shelf life.
During operation, when the battery is at a good state-of-charge, a low-ohmic, high-efficient integrated pass-through path connects the battery to the powered system.
If the battery gets to a lower state of charge and its voltage becomes lower than the desired minimum system voltage, the device seamlessly transits into boost mode to uses the full battery capacity.
TPS6128xA device supports more than 4A pulsed load current even from a deeply discharged battery. In this mode of operation, the TPS6128xA enables the utilization of the full battery capacity: A high battery-cut-off voltage originated by powered components with a high minimum input voltage is overcome; new battery chemistries can be fully discharged; high current pulses forcing the system into shutdown are buffered by the device seamlessly transitioning between boost and by-pass mode back and forth.
This has significant impact on the battery on-time and translates into either a longer use-time and better user-experience at an equal battery capacity or into reduced battery costs at similar use-times.
The TPS6128xA offers a small solution size < 20mm2 due to minimum amount of external components, enabling the use of small inductors and input capacitors, available as a 16-pin chip-scale package CSP.
The TPS6128xA operates in synchronous, 2.3MHz boost mode and enters power-save mode operation PFM at light load currents to maintain high efficiency over the entire load current range.
输出接口数 1
输出电压 2.85V ~ 4.4V
输出电流 5 A
静态电流 15.0 µA
调节输出数 1
开关频率 2.3 MHz
拓扑结构 Boost
输入电压Max 4.85 V
输入电压Min 2.3 V
输出电流Max 4 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 4.85 V
安装方式 Surface Mount

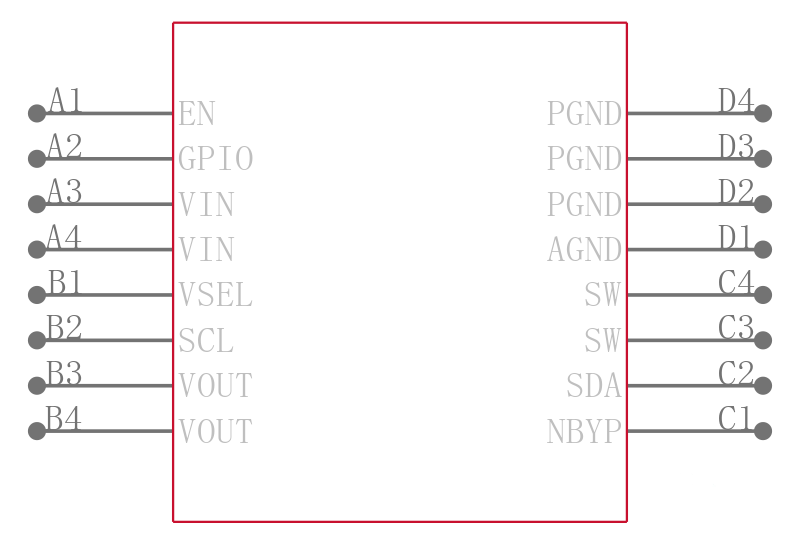

引脚数 16

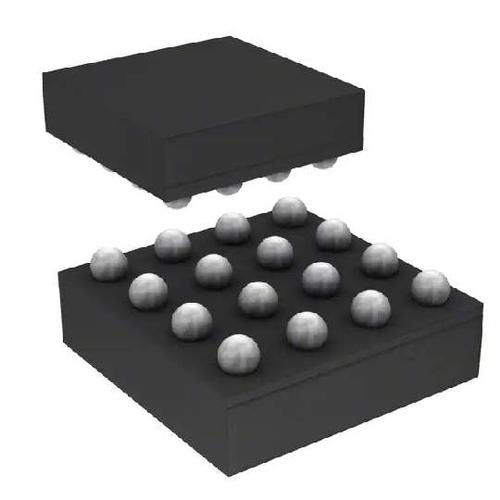

封装 DSBGA-16
长度 1.162 mm
宽度 0.822 mm
高度 0.625 mm
封装 DSBGA-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS61280AYFFR TI 德州仪器 | 当前型号 | 当前型号 |
TPS61280AYFFT 德州仪器 | 完全替代 | TPS61280AYFFR和TPS61280AYFFT的区别 |
