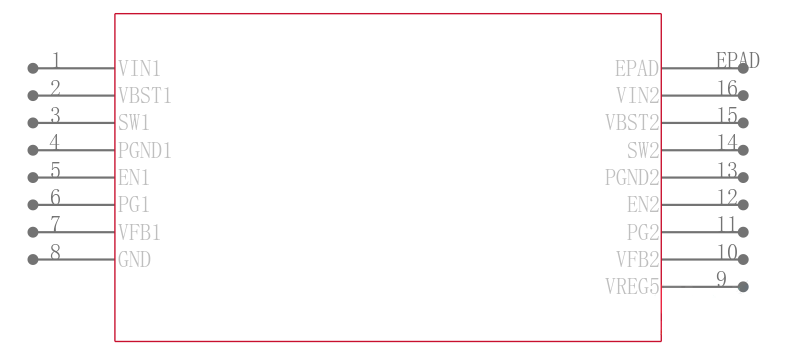

TPS54294PWP

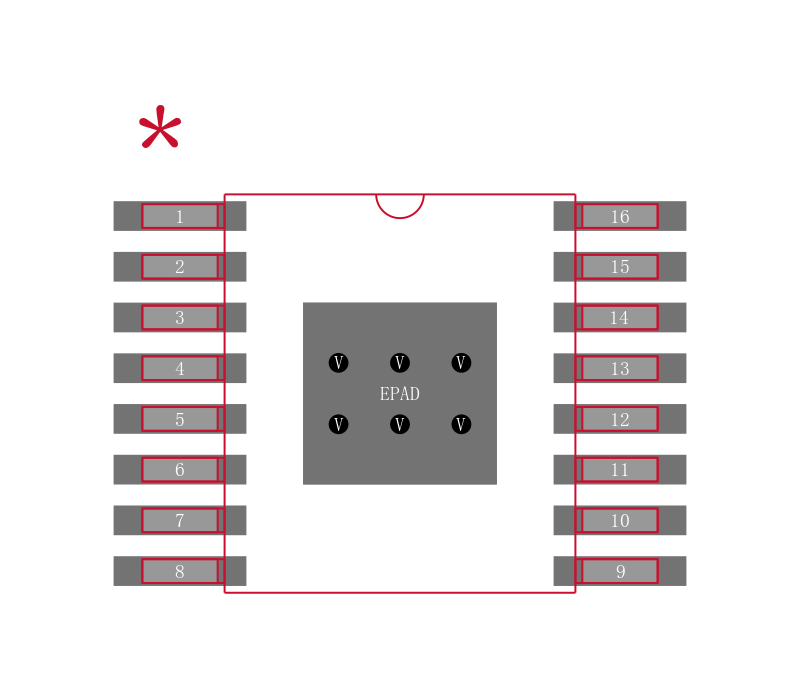

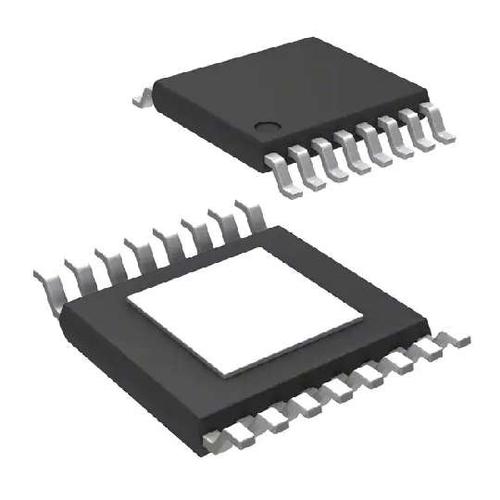

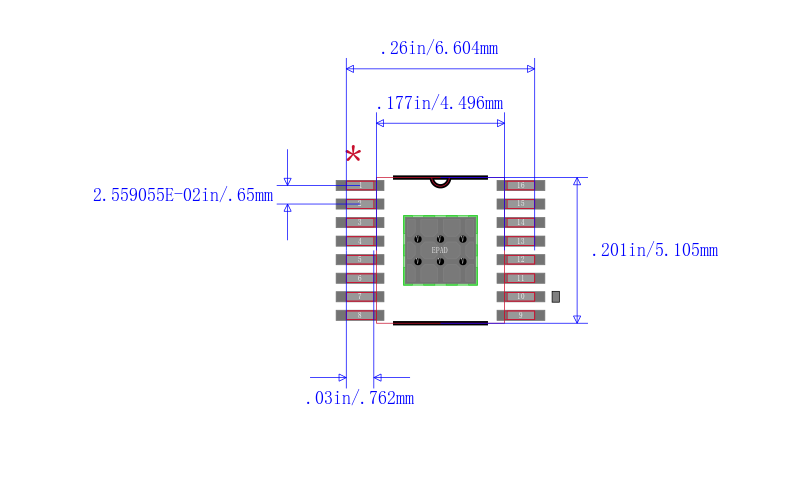

TEXAS INSTRUMENTS  TPS54294PWP  芯片, 同步降压稳压器, 可调, 2A, DL, 16HTSSOP

The is a dual adaptive on-time D-CAP2™ mode synchronous Buck Converter enables system designers to complete the suite of various end equipment"s power bus regulators with a cost effective, low component count and low standby current solution. The main control loops of the TPS54294 use the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™ operation at light loads. Eco-mode™ allows the TPS54294 to maintain high efficiency during lighter load conditions. It is able to adapt to both low equivalent series resistance ESR output capacitors such as POSCAP or SP-CAP and ultra-low ESR, ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5 to 18V.

.

Highly efficient integrated FETs optimized for low duty cycle applications

.

High initial reference accuracy

.

Non-sinking pre-biased soft-start

.

Powergood

.

Cycle-by-cycle over-current limit control

.

OCL/OVP/UVP/UVLO/TSD Protections

.

Adaptive gate drivers with integrated boost PMOS switch

.

OCP Constant due to thermally compensated rDSon with 4000ppm/°C

.

Auto-Skip Eco-mode™ for high efficiency at light load

.

Green product and no Sb/Br
