结合100 -V型IEEE 802.3af PD和DC / DC控制器 INTEGRATED 100-V IEEE 802.3af PD AND DC/DC CONTROLLER
DESCRIPON
The TPS23750 integrates the functionality of the TPS2375 with a primary-side dc/dc PWM controller.
The designer can create a front-end solution for PoE-PD applications with minimum external components. The TPS23770 is identical to the TPS23750 with the exception of the undervoltage lockout turn-on voltage, which is compatible with legacy systems.
FEATURES
• Complete 802.3af PoE Interface
– Features derived from the TPS2375
– 100 V, 0.6 Ω Internal Pass MOSFET
– Standard and Legacy UVLO Choices
– Fixed 140 mA Inrush Limit
• Primary Side DC/DC Converter Control
– Minimum External Component Count
– Current Mode Control
– Isolated and Non-Isolated Topologies
– Programmable Operating Frequency
– Current Sense Leading-edge Blanking
– 50% Duty Cycle Limiting
– Voltage Output Error Amplifier
• Internal PoE and Converter Sequencing
• Industry-Standard 20 Lead Package
• Industrial Temperature Range: –40°C to 85°C
APPLICATIONS
• All PoE PD Devices Including:
– Wireless Access Points
– VoIP Phones
– Security Cameras
输入电压DC 67.0 V
输出电流 1.00 A
供电电流 1 mA
通道数 1
输出功率 12.95 W
输入电压Max 67 V
输入电压Min 0 V
额定功率Max 12.95 W
最大占空比 49.5 %
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0V ~ 67V
安装方式 Surface Mount
引脚数 20

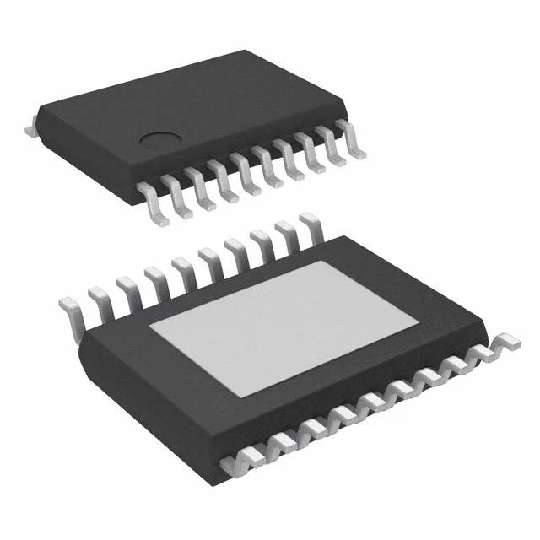

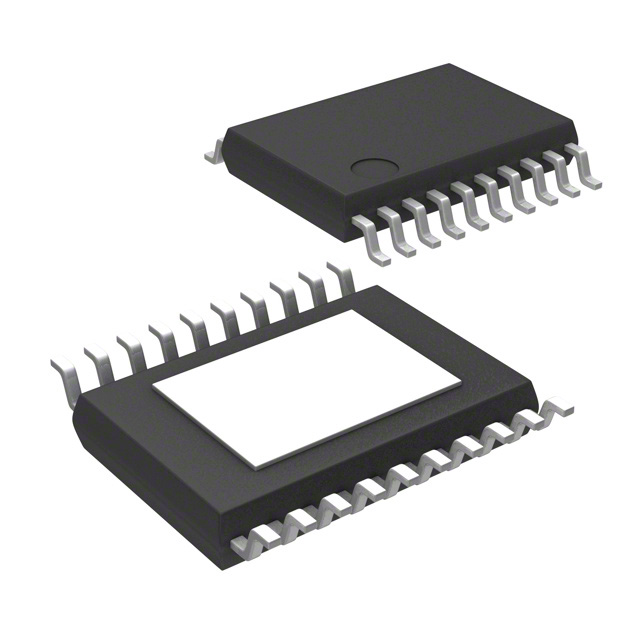

封装 HTSSOP-20
封装 HTSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS23770PWPR TI 德州仪器 | 当前型号 | 当前型号 |
TPS23750PWPR 德州仪器 | 类似代替 | TPS23770PWPR和TPS23750PWPR的区别 |
TPS23770PWPRG4 德州仪器 | 类似代替 | TPS23770PWPR和TPS23770PWPRG4的区别 |
TPS23770PWP 德州仪器 | 功能相似 | TPS23770PWPR和TPS23770PWP的区别 |
