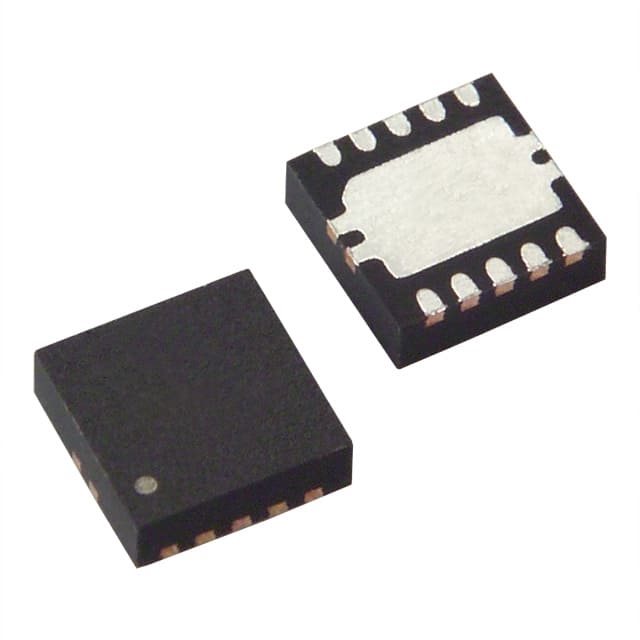

TEXAS INSTRUMENTS TPS54335-1ADRCT 直流-直流开关同步降压稳压器, 可调, 4.5V-28V输入, 800mV-24V/3A输出, 1.5 MHz, VSON-10
降压 开关稳压器 IC 正 可调式 0.8V 1 输出 3A 10-VFDFN 裸露焊盘
得捷:
IC REG BUCK ADJUSTABLE 3A 10VSON
欧时:
Conv DC-DC, TPS54335-1ADRCT
立创商城:
降压型 Vin=4.5V~28V Vout=800mV~24V 3A
德州仪器TI:
4.5V to 28V Input, 3A, Synchronous, Step-Down Converter with Eco-mode in alternative DRC package
艾睿:
Adjust the voltage level of your devices with this step down TPS54335-1ADRCT DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 3 A. The best way to provide power to your application is by using this, which needs a voltage of at least 4.5 V and no higher than 28 V. With an adjustable output that has a voltage of 0.8 to 24 V, this is power management at its best. This device has a typical switch current of 5 A. Its switching regulator has a frequency of 50 to 1500 kHz. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
Conv DC-DC Single-OUT Step Down 4.5V 28V 10-Pin VSON T/R
Verical:
Conv DC-DC 4.5V to 28V Synchronous Step Down Single-Out 0.8V to 24V 3A 10-Pin VSON EP T/R
Newark:
# TEXAS INSTRUMENTS TPS54335-1ADRCT DC/DC CONV, SYNC BUCK, 1.5MHZ, VSON-10
输出接口数 1
输出电压 0.8V ~ 24V
输出电流 3 A
针脚数 10
静态电流 600 µA
调节输出数 1
开关频率 1.5 MHz
拓扑结构 Buck
开关电流 4.9 A
输入电压Max 28 V
输入电压Min 4.5 V
输出电压Max 24 V
输出电压Min 800 mV
输出电流Max 3 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 28 V
安装方式 Surface Mount
引脚数 10
封装 VFDFN-10
封装 VFDFN-10
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 工业, 消费电子产品, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
