高功率/高效率PoE接口和DC / DC控制器 High Power/High Efficiency PoE Interface and DC/DC Controller
By using the power over Ethernet controller from Texas Instruments you can save money by avoiding costly AC outlets. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 0 V that does not exceed 57 V. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This POE controller has a minimum operating temperature of -40 °C and a maximum of 125 °C. This POE controller"s maximum duty cycle is 78Typ %.
供电电流 920 µA
通道数 1
输入电压Max 57 V
输入电压Min 0 V
输出功率Max 30 W
额定功率Max 30 W
最大占空比 78 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 0V ~ 57V
安装方式 Surface Mount
引脚数 20

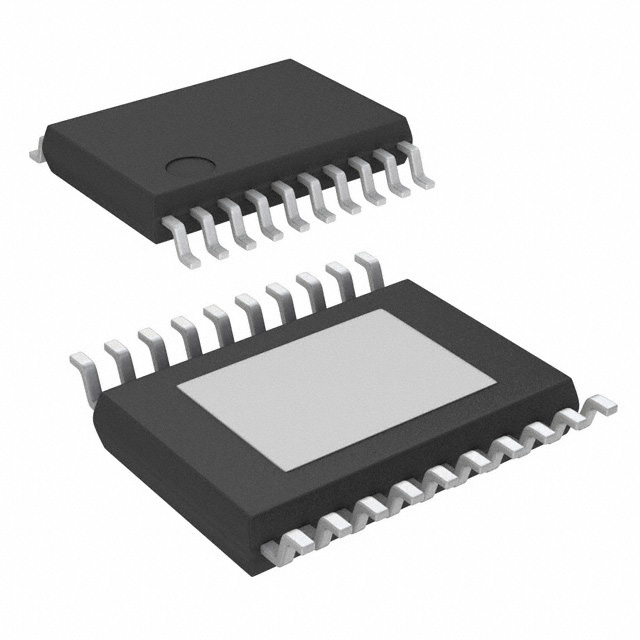

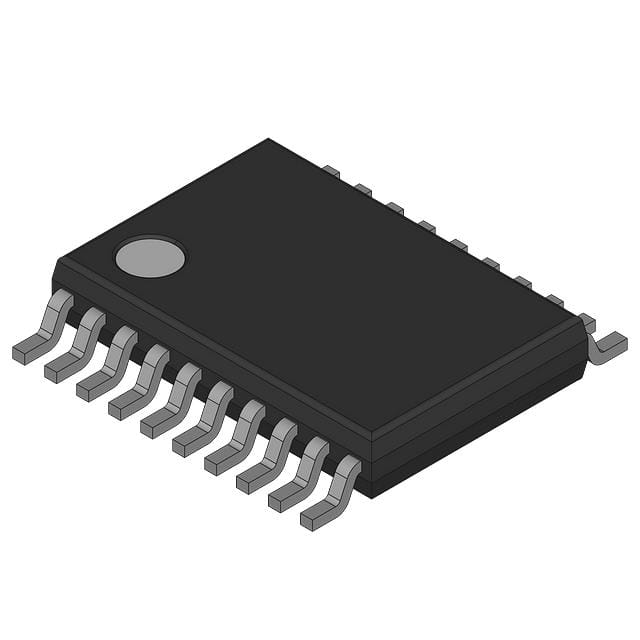

封装 HTSSOP-20
高度 1.05 mm
封装 HTSSOP-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS23756PWPR TI 德州仪器 | 当前型号 | 当前型号 |
TPS23754PWP 德州仪器 | 完全替代 | TPS23756PWPR和TPS23754PWP的区别 |
TPS23756PWP 德州仪器 | 完全替代 | TPS23756PWPR和TPS23756PWP的区别 |
TPS23754PWPR 德州仪器 | 完全替代 | TPS23756PWPR和TPS23754PWPR的区别 |
