TPS76733QDR

TPS76733QDR图片1
TPS76733QDR图片2
TPS76733QDR图片3
TPS76733QDR图片4
TPS76733QDR图片5
TPS76733QDR图片6
TPS76733QDR图片7
TPS76733QDR概述

快速瞬态响应1 -A低压差线性稳压器 FAST-TRANSIENT-RESPONSE 1-A LOW-DROPOUT LINEAR REGULATORS

Linear Voltage Regulator IC 1 Output 1A 8-SOIC


得捷:
IC REG LINEAR 3.3V 1A 8SOIC


立创商城:
TPS76733QDR


德州仪器TI:
1-A, 10-V, low-dropout voltage regulator with enable & RESET with delay


贸泽:
LDO Voltage Regulators Fast-Transient Response 1-A


艾睿:
Keep calm and stay stable by implementing this LDO TPS76733QDR linear regulator developed by Texas Instruments. Its typical dropout voltage at current is 0.35@1A V. It has an overall accuracy of ±2 %. This device has a maximum power dissipation of 904 mW. This voltage regulation device&s;s single output can produce a current up to 1 A. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 10 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. At a load regulation of 3mVTyp and line regulation of 0.01%/VTyp a constant current can be produced at the output of your circuit. Its maximum power dissipation is 904 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.575@1A V. Its polarity is positive.


安富利:
LDO Regulator Pos 3.3V 1A 8-Pin SOIC T/R


Chip1Stop:
Single Channel LDO Single Output LDO, 1.0A, Fixed3.3V, Low Quiescent Current, Fast Transient Response LDO Regulator Pos 3.3V 1A 8-Pin SOIC T/R


Verical:
LDO Regulator Pos 3.3V 1A 8-Pin SOIC T/R


Win Source:
FAST-TRANSIENT-RESPONSE 1-A LOW-DROPOUT LINEAR REGULATORS


TPS76733QDR中文资料参数规格
技术参数

输出接口数 1

输出电压 3.3 V

输出电流 1 A

供电电流 125 µA

耗散功率 0.904 W

静态电流 80.0 µA

输出电容类型 Ceramic

跌落电压 0.35V @1A

调节输出数 1

输入电压Max 10 V

输入电压Min 2.7 V

输出电压Min 3.3 V

输出电流Max 1 A

工作温度Max 125 ℃

工作温度Min 40 ℃

耗散功率Max 904 mW

精度 2 %

输入电压 10 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 SOIC-8

外形尺寸

长度 4.9 mm

宽度 3.91 mm

高度 1.58 mm

封装 SOIC-8

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

TPS76733QDR引脚图与封装图

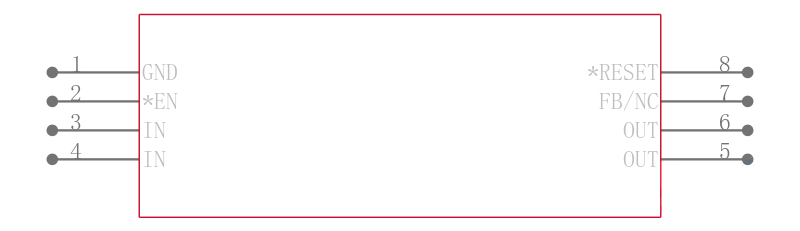

TPS76733QDR引脚图
TPS76733QDR封装图
TPS76733QDR封装焊盘图
在线购买TPS76733QDR
型号: TPS76733QDR
制造商: TI 德州仪器
描述:快速瞬态响应1 -A低压差线性稳压器 FAST-TRANSIENT-RESPONSE 1-A LOW-DROPOUT LINEAR REGULATORS
替代型号TPS76733QDR
型号/品牌 代替类型 替代型号对比

TPS76733QDR

TI 德州仪器

当前型号

当前型号

TPS76733QD

德州仪器

类似代替

TPS76733QDR和TPS76733QD的区别

TPS76733QDG4

德州仪器

类似代替

TPS76733QDR和TPS76733QDG4的区别

TPS76733QDRG4

德州仪器

功能相似

TPS76733QDR和TPS76733QDRG4的区别
