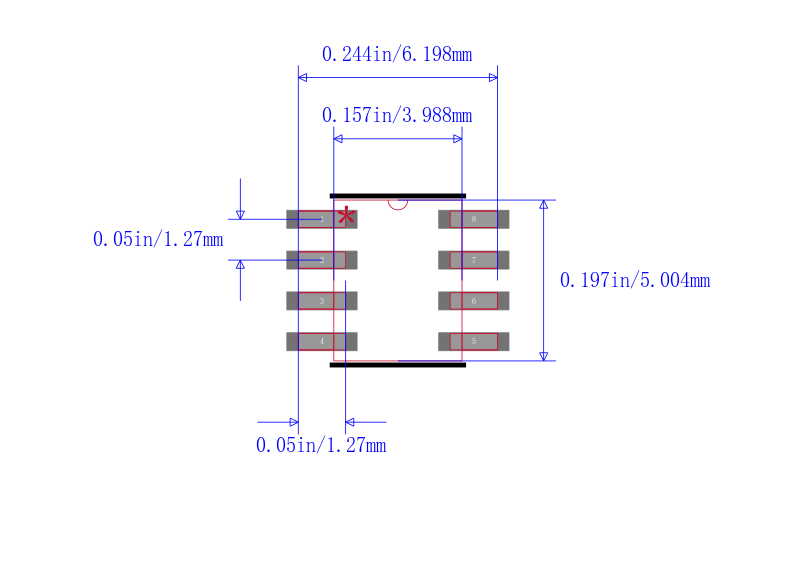

TPS2042ADG4

电流限制的配电开关 CURRENT-LIMITED POWER-DISTRIBUTION SWITCHES

description

The TPS2041A through TPS2044A and TPS2051A through TPS2054A power-distribution

switches are intended for applications where heavy capacitive loads and short circuits are likely to be encountered. These devices incorporate 80-mΩ N-channel MOSFET high-side power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by an independent logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize

current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V.

80-mΩHigh-Side MOSFET Switch

500 mA Continuous Current Per Channel

Independent Thermal and Short-Circuit Protection With Overcurrent Logic Output

Operating Range. . . 2.7 V to 5.5 V

CMOS- and TTL-Compatible Enable Inputs

2.5-ms Typical Rise Time

Undervoltage Lockout

10 µA Maximum Standby Supply Current for Single and Dual 20 µA for Triple and Quad

Bidirectional Switch

Ambient Temperature Range, 0°C to 85°C

ESD Protection

UL Listed – File No. E169910
