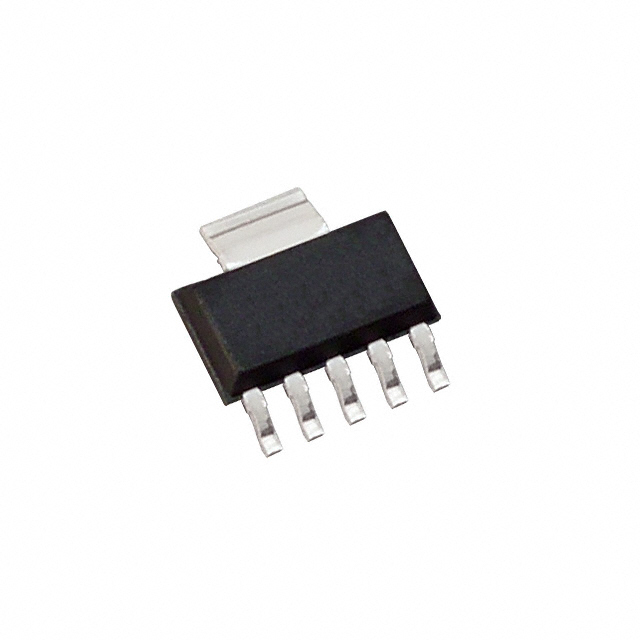

1.5低噪声快速瞬态响应低压降稳压器 1.5-A LOW-NOISE FAST-TRANSIENT-RESPONSE LOW-DROPOUT REGULATOR
PMIC - 稳压器 - 线性 正 固定 1 输出 1.5A SOT-223-6
得捷:
IC REG LINEAR 1.5V 1.5A SOT223-6
立创商城:
TL1963A-15DCQR
德州仪器TI:
1.5-A, 20-V, low-dropout voltage regulator with reverse current & reverse voltage protection
艾睿:
Use this LDO TL1963A-15DCQR linear regulator from Texas Instruments to vary your voltage levels to your desired level. Its typical dropout voltage at current is 0.02@1mA|0.1@100mA|0.19@500mA|0.34@1.5A V. This voltage regulation device&s;s single output can produce a current up to 1.5 A. Use this part at voltages between 1.9 V and 20 V. With a fixed output that has a voltage of 1.5 V, this is power management at its best. At a load regulation of 9mV and line regulation of 6mV a constant current can be produced at the output of your circuit. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.06@1mA|0.17@100mA|0.27@500mA|0.45@1.5A V.
安富利:
LDO Regulator Pos 1.5V 1.5A 6-Pin5+Tab SOT-223 T/R
Chip1Stop:
Single Channel LDO 1.5-A Low-Noise Fast-Transient-Response LDO Regulator LDO Regulator Pos 1.5V 1.5A 6-Pin5+Tab SOT-223 T/R
Verical:
LDO Regulator Pos 1.5V 1.5A 6-Pin5+Tab SOT-223 T/R
输出接口数 1
输出电压 1.5 V
输出电流 1.5 A
供电电流 1mA ~ 80mA
静态电流 1.00 mA
输出电容类型 Ceramic
跌落电压 0.34V @1.5A
调节输出数 1
输入电压Max 20 V
输入电压Min 1.9 V
输出电压Min 1.5 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2.1V ~ 20V
安装方式 Surface Mount

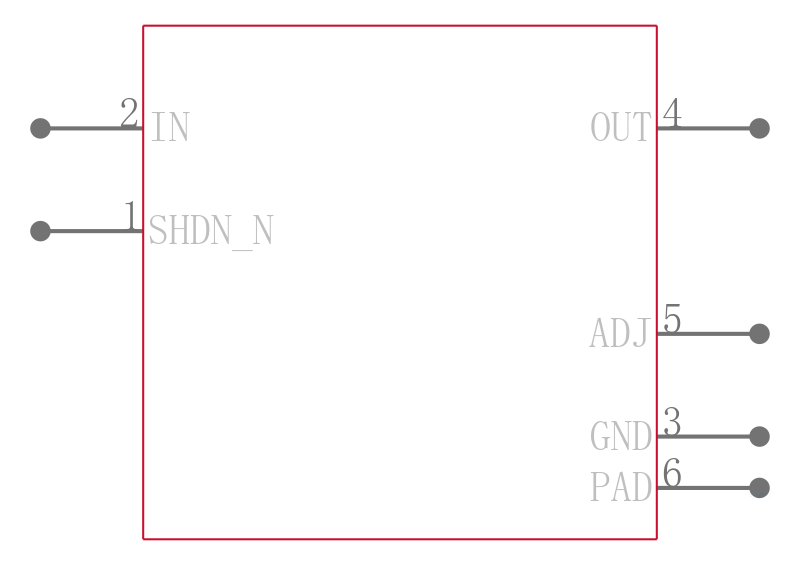

引脚数 6

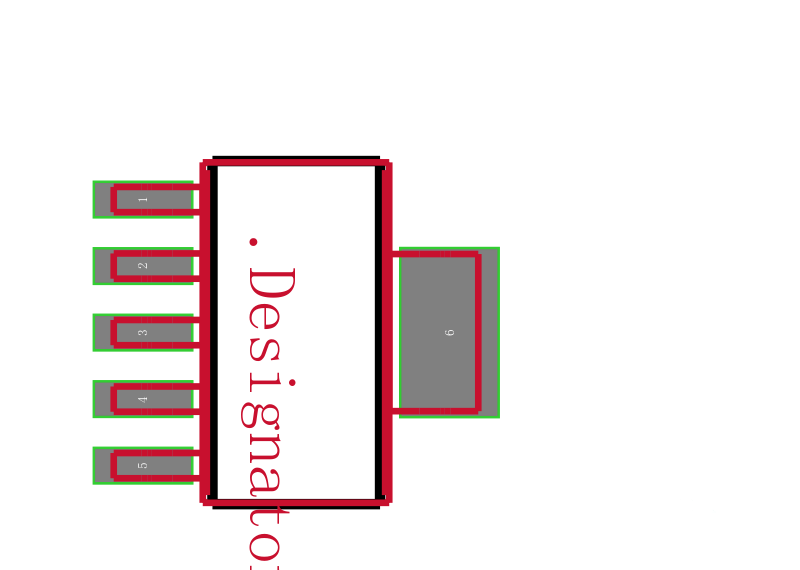

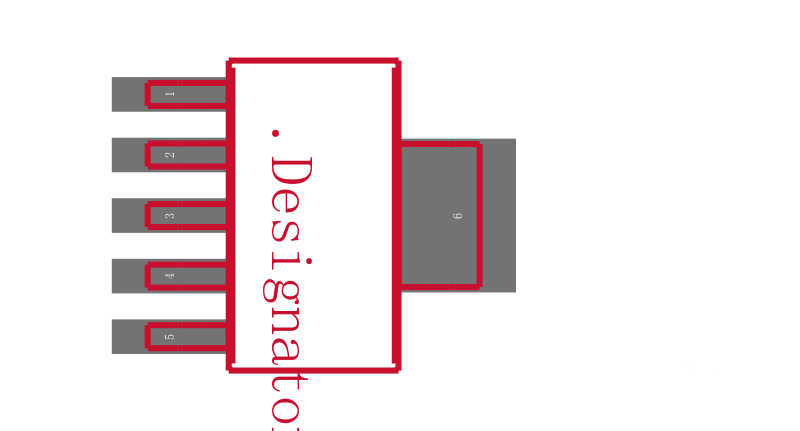

封装 SOT-223-6
封装 SOT-223-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TL1963A-15DCQR TI 德州仪器 | 当前型号 | 当前型号 |
TPS7A4515DCQR 德州仪器 | 类似代替 | TL1963A-15DCQR和TPS7A4515DCQR的区别 |
TL1963A-15DCQT 德州仪器 | 类似代替 | TL1963A-15DCQR和TL1963A-15DCQT的区别 |
TPS7A4515DCQT 德州仪器 | 类似代替 | TL1963A-15DCQR和TPS7A4515DCQT的区别 |
