TEXAS INSTRUMENTS TPS74901RGWR 芯片, 稳压器, LDO, 可调, 3A, VQFN-20
The TPS74901 low-dropout LDO linear regulator provides an easy-to-use, robust power management solution for a wide variety of applications. User-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current during start-up. The soft-start is monotonic and well-suited for powering many different types of processors and ASICs. The enable input and power-good output allow easy sequencing with external regulators. This complete flexibility permits the user to configure a solution that meets the sequencing requirements of FPGAs, DSPs, and other applications with special start-up requirements.
A precision reference and error amplifier deliver 2% accuracy over load, line, temperature, and process. The device is stable with any type of capacitor ≥ 2.2 µF, and the device is fully specified from –40°C to 125°C. The TPS74901 is offered in a small 3 mm × 3 mm VSON package and a small 5-mm × 5-mm VQFN package, yielding a highly compact total solution size. The device is also available in a DDPAK-7 package.
输出接口数 1
输出电压 0.8V ~ 3.6V
输出电流 3 A
针脚数 20
耗散功率 2.74 W
静态电流 3 mA
输出电容类型 Ceramic
跌落电压 120 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 0.8 V
输出电压Max 3.6 V
输出电压Min 800 mV
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 2740 mW
精度 2 %
输入电压 0.8V ~ 5.5V
安装方式 Surface Mount
引脚数 20

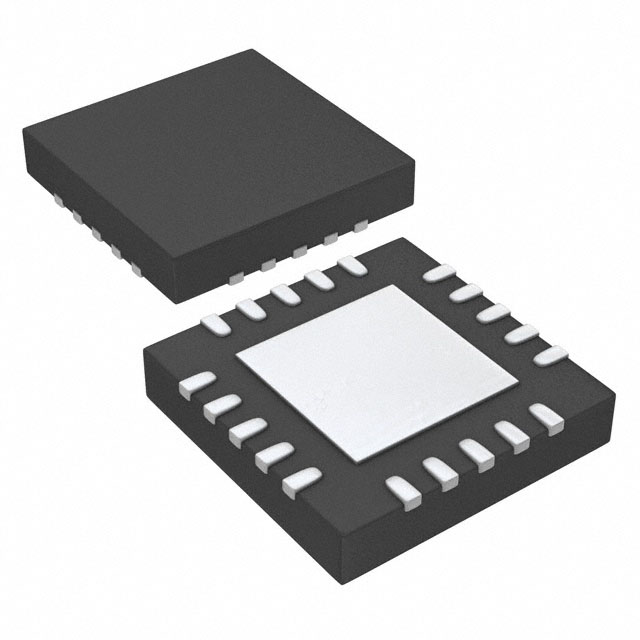

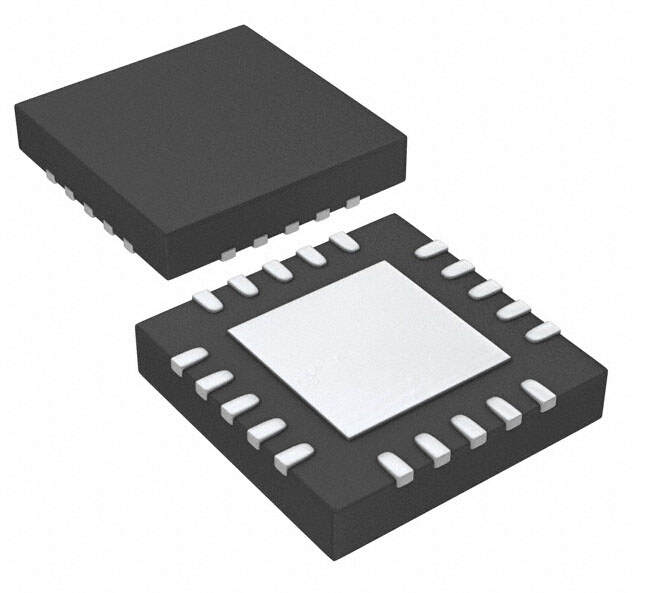

封装 VQFN-20
长度 5 mm
宽度 5 mm
高度 0.9 mm
封装 VQFN-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS74901RGWR TI 德州仪器 | 当前型号 | 当前型号 |
TPS74901RGWT 德州仪器 | 类似代替 | TPS74901RGWR和TPS74901RGWT的区别 |
TPS74901RGWTG4 德州仪器 | 类似代替 | TPS74901RGWR和TPS74901RGWTG4的区别 |
TPS74901RGWRG4 德州仪器 | 类似代替 | TPS74901RGWR和TPS74901RGWRG4的区别 |
