1.5 -A , 60 -V ,降压SWIFT DC / DC具有Eco-Mode转换器 1.5-A, 60-V, Step-Down SWIFT DC/DC Converter with Eco-mode
DESCRIPON
The TPS54160A device is a 60-V, 1.5-A, step down regulator with an integrated high-side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load, regulated output supply current to 116 μA. Using the enable pin, shutdown supply current is reduced to 1.3 μA.
FEATURES
• 3.5 V to 60 V Input Voltage Range
• 200-mΩ High-Side MOSFET
• High Efficiency at Light Loads with a Pulse Skipping Eco-mode™
• Tighter Enable Threshold than TPS54160 for More Accurate UVLO Voltage
• Adjustable UVLO Voltage and Hysteresis
• 116 μA Operating Quiescent Current
• 1.3 μA Shutdown Current
• 100 kHz to 2.5 MHz Switching Frequency
• Synchronizes to External Clock
• Adjustable Slow Start/Sequencing
• UV and OV Power Good Output
• 0.8-V Internal Voltage Reference
• MSOP10 and 3mm x 3mm VSON Package with PowerPAD™
• Supported by WEBBENCH® and SwitcherPro™ Software Tool
APPLICATIONS
• 12-V, 24-V and 48-V Industrial and Commercial Low Power Systems
• Aftermarket Auto Accessories: Video, GPS, Entertainment
输出接口数 1
输出电压 0.8V ~ 58V
输出电流 1.5 A
静态电流 116 µA
调节输出数 1
开关频率 100kHz ~ 2.5MHz
输入电压Max 60 V
输入电压Min 3.5 V
输出电压Max 58 V
输出电压Min 0.8 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 60 V
安装方式 Surface Mount
引脚数 10

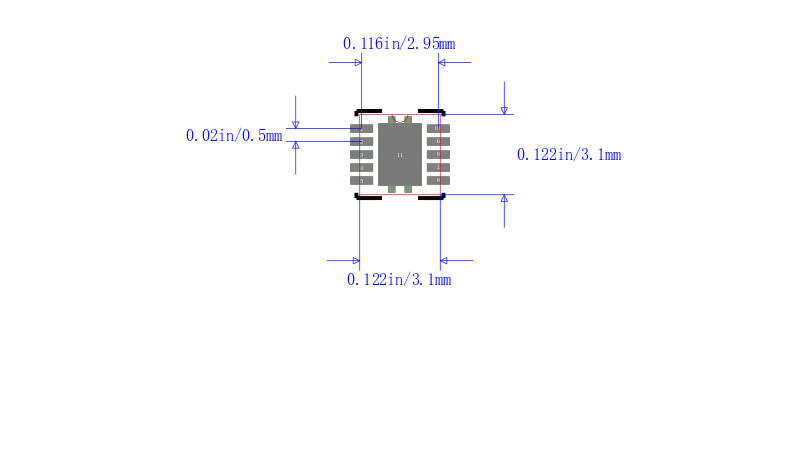

封装 VSON-10
封装 VSON-10
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TPS54160ADRCR TI 德州仪器 | 当前型号 | 当前型号 |
TPS54160ADGQR 德州仪器 | 完全替代 | TPS54160ADRCR和TPS54160ADGQR的区别 |
TPS54160ADGQ 德州仪器 | 类似代替 | TPS54160ADRCR和TPS54160ADGQ的区别 |
TPS54160ADRCT 德州仪器 | 类似代替 | TPS54160ADRCR和TPS54160ADRCT的区别 |
