汽车类 0.9V 至 5.5V 输入范围、1.8A 升压转换器 10-VSON -40 to 125
The TPS6102x devices provide a power supply solution for products powered by either a one-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. Output currents can go as high as 200 mA while using a single-cell alkaline, and discharge it down to 0.9 V. It can also be used for generating 5 V at 500 mA from a 3.3-V rail or a Li-Ion battery. The boost converter is based on a fixed frequency, pulse-width-modulation PWM controller using a synchronous rectifier to obtain maximum efficiency. At low load currents, the converter enters the _Power Save Mode_ to maintain a high efficiency over a wide load current range. The _Power Save Mode_ can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum peak current in the boost switch is limited to a value of 800 mA, 1500 mA or 1800 mA depending on the device version.
The TPS6102x devices keep the output voltage regulated even when the input voltage exceeds the nominal output voltage. The output voltage can be programmed by an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. A low-EMI mode is implemented to reduce ringing and, in effect, lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. The device is packaged in a 10-pin VSON PowerPAD™ package.
输出接口数 1
输出电压 1.8V ~ 5.5V
静态电流 25.0 µA
调节输出数 1
开关频率 600 kHz
拓扑结构 Boost
开关电流 1.8 A
输入电压Max 5.5 V
输入电压Min 0.9 V
输出电压Max 5.5 V
输出电压Min 1.8 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 10

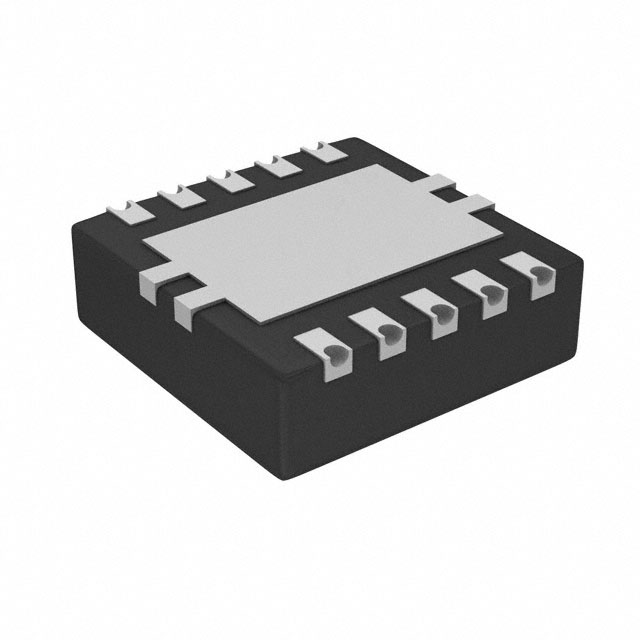

封装 VSON-10
封装 VSON-10
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
